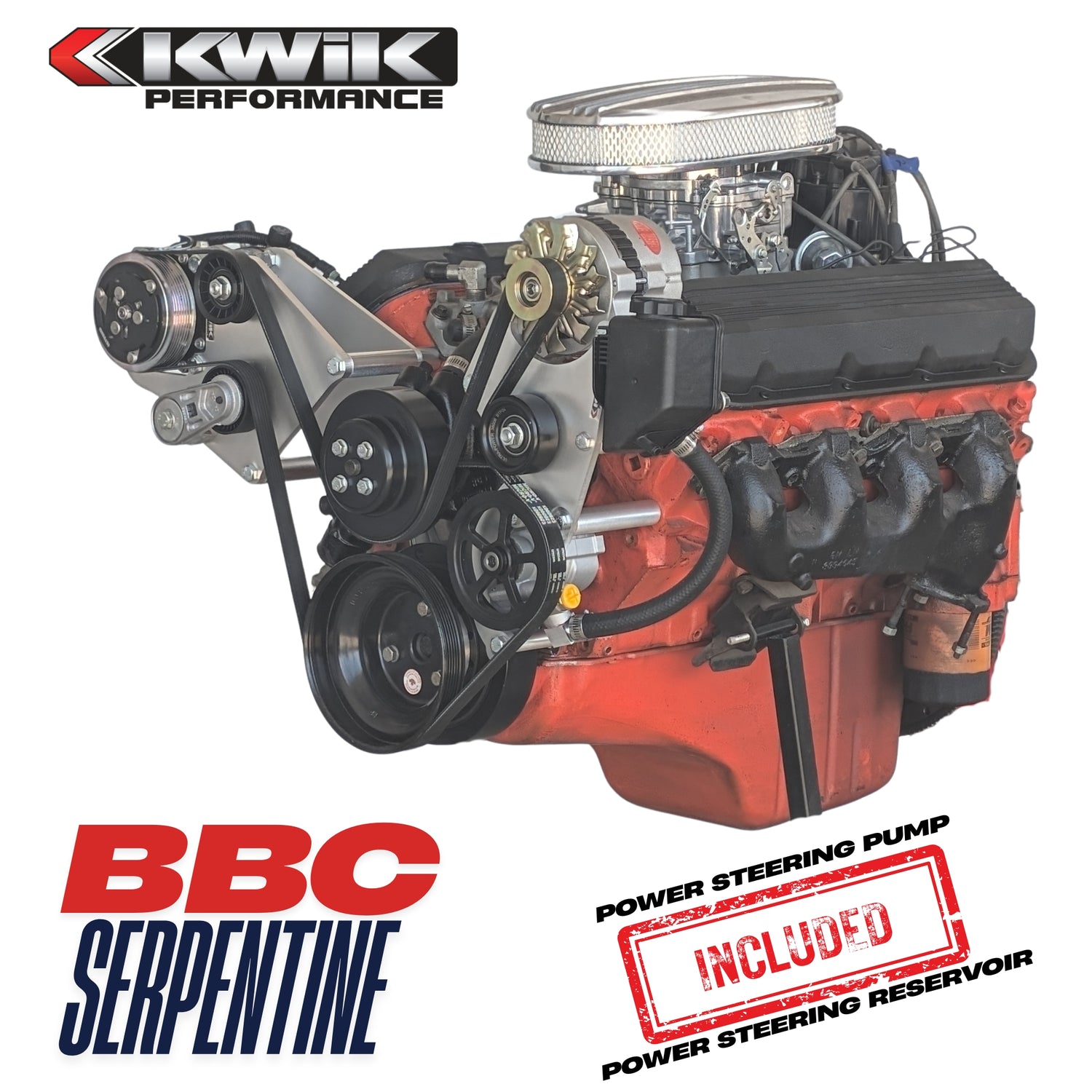

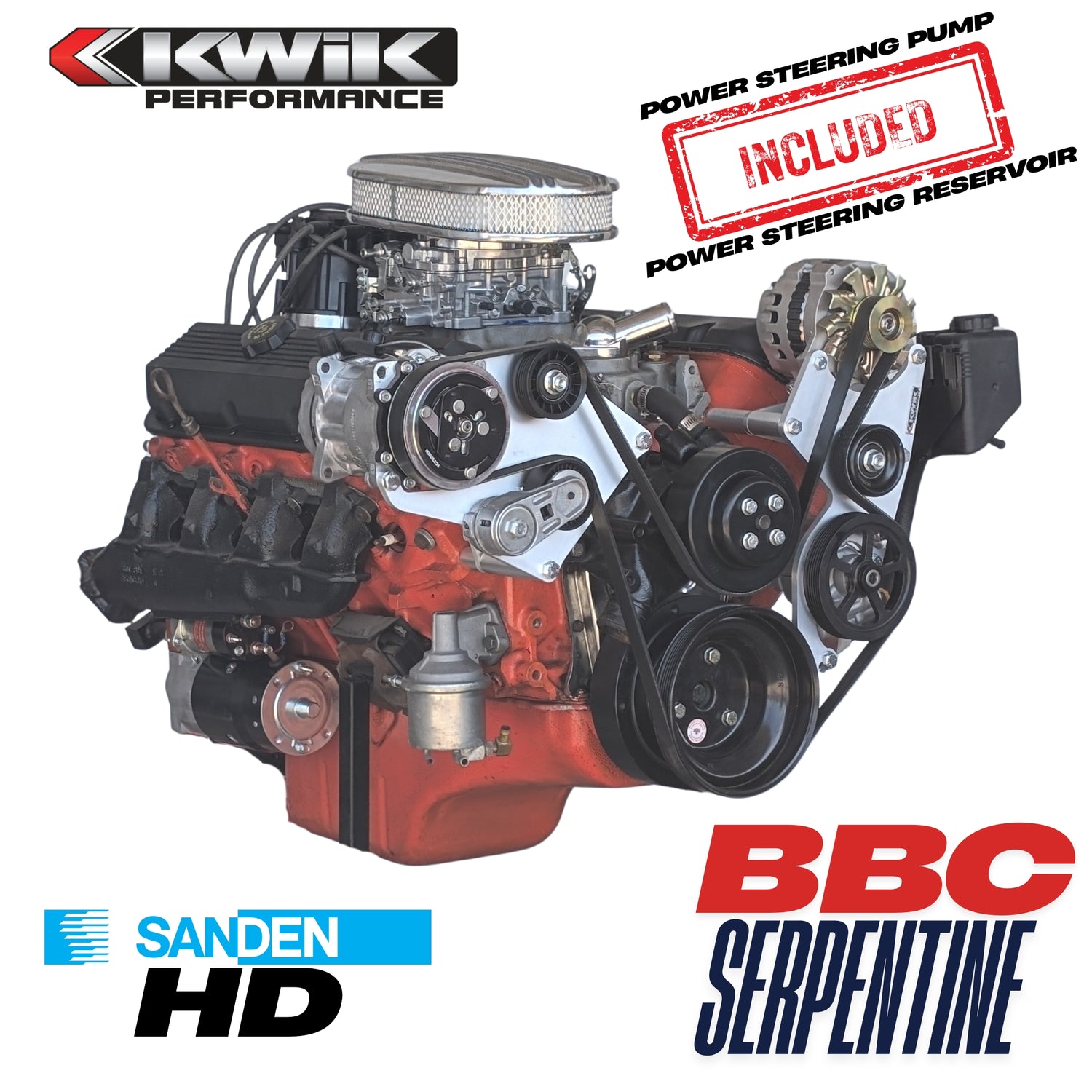

BBC Serpentine Package, AC-Alt/PS Type-2 pump (Sanden 508/709) - K10655

Q:  What components are included in the package?

• Brackets: CNC-machined 6061-T6 aircraft-grade aluminum with a brushed satin finish.
• Hardware: All necessary spacers and zinc-coated fasteners.
• Power Steering Pump: A new aluminium "Type 2" pump with 5.5” pulley.
• Power Steering Reservoir: GM style baffled remote reservoir with mounting bracket and 5/8" feed hose
• Pulleys: Water pump pulley and idler pulleys.
• Tensioner: Automatic spring-style tensioner.
• Adapters: SBC crank pulley with a BBC (1966–1993) crank pulley adapter.

*If your BBC engine is a (1994-2000): Call us and we will make sure you get the correct adapter

Q:  What additional components are required for a complete installation?

A: The following parts are not included and must be sourced separately:

• AC Compressor: Sanden 508/709 HD compressor. We offer a Genuine Sanden, PN 10300-01.
• Water Pump: A reverse-rotation "long" water pump (found on 1988–2000 454 engines). We offer a Gates PN 44030.
• Alternator: A CS130 serpentine alternator (standard on 1990–1995 GM trucks) or a compatible high-output 1-wire unit.  We offer a PowerMaster 140 amp, PN 47861
• Drive Belt: A 6-rib serpentine belt.  Suggested lengths and Gates part numbers can be found in our installation instructions.



BBC Sanden HD AC Installation Video (YouTube)

BBC Sanden HD AC Instructions Instructions (pdf)

BBC Alt/PS (Type-2) Installation Video (YouTube)

BBC Alt/PS (Type-2) pump Installation Instructions (pdf)

Big Block Spotters Guide (Adobe pdf File)

Gates Belt Chart (Part number and length)

Q: Which engine platforms are compatible with the K10655 bracket system?

A: This system is engineered for all Big Block Chevy (BBC) engines, including Mark IV, Gen 5, and Gen 6 architectures. It is compatible with both standard and tall-deck blocks, covering displacements from 366 to 572 cubic inches.

Q: What is required for BBC engines manufactured between 1994 and 2000?

A: The standard kit includes a crank pulley adapter for 1966–1993 engines. If you are using a 1994–2000l Gen 5 or Gen 6 engine, a different crankshaft adapter is required for proper harmonic balancer fitment. Please call or email and we will send the correct adapter.

Q: What specific A/C compressor is required for this system?

A: The K10655 is designed for the Sanden 508 (SD5H14) or Sanden 709 (SD7H15) style compressor. We recommend and offer the 709 model for its smoother operation and increased cooling capacity.

Q: What water pump specifications must be met for installation?

A: This system requires a reverse-rotation "long" water pump, typically found on 1988–2000 454 truck engines. We offer a Gates PN 44030. Standard-rotation v-belt pumps are not compatible.

Q: How does the included Type-2 power steering pump differ from other options?

A: The Type-2 pump (Saginaw CB style) is significantly more compact than the classic P-series "canned ham" pump. It is designed for use with a remote-style reservoir.

Q: Which alternator model is compatible with the K10655 bracket?

A: The bracket is designed for a GM CS130 serpentine alternator (standard on 1990–1995 GM trucks). We offer a PowerMaster 140 amp, PN 47861.

Q: How is the belt length determined for this configuration?

A: The system uses a single 6-rib serpentine belt. Because pulley diameters and alternator selections vary, a belt is not included. The installation manual provides a reference chart with suggested Gates part numbers based on common setups. Final length must be verified on the vehicle to ensure the tensioner is within its proper operating range.

Q: Does this kit provide clearance for aftermarket components?

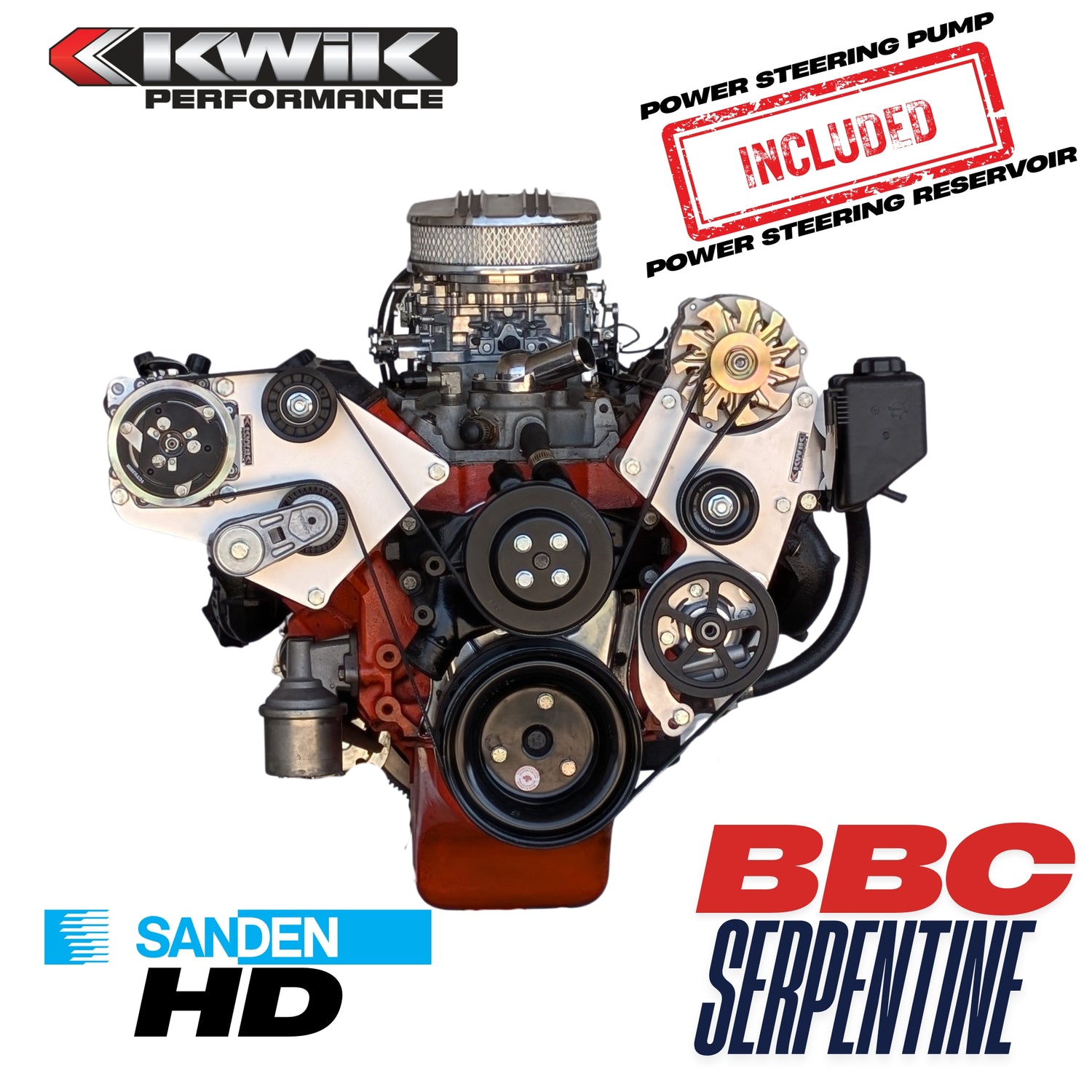

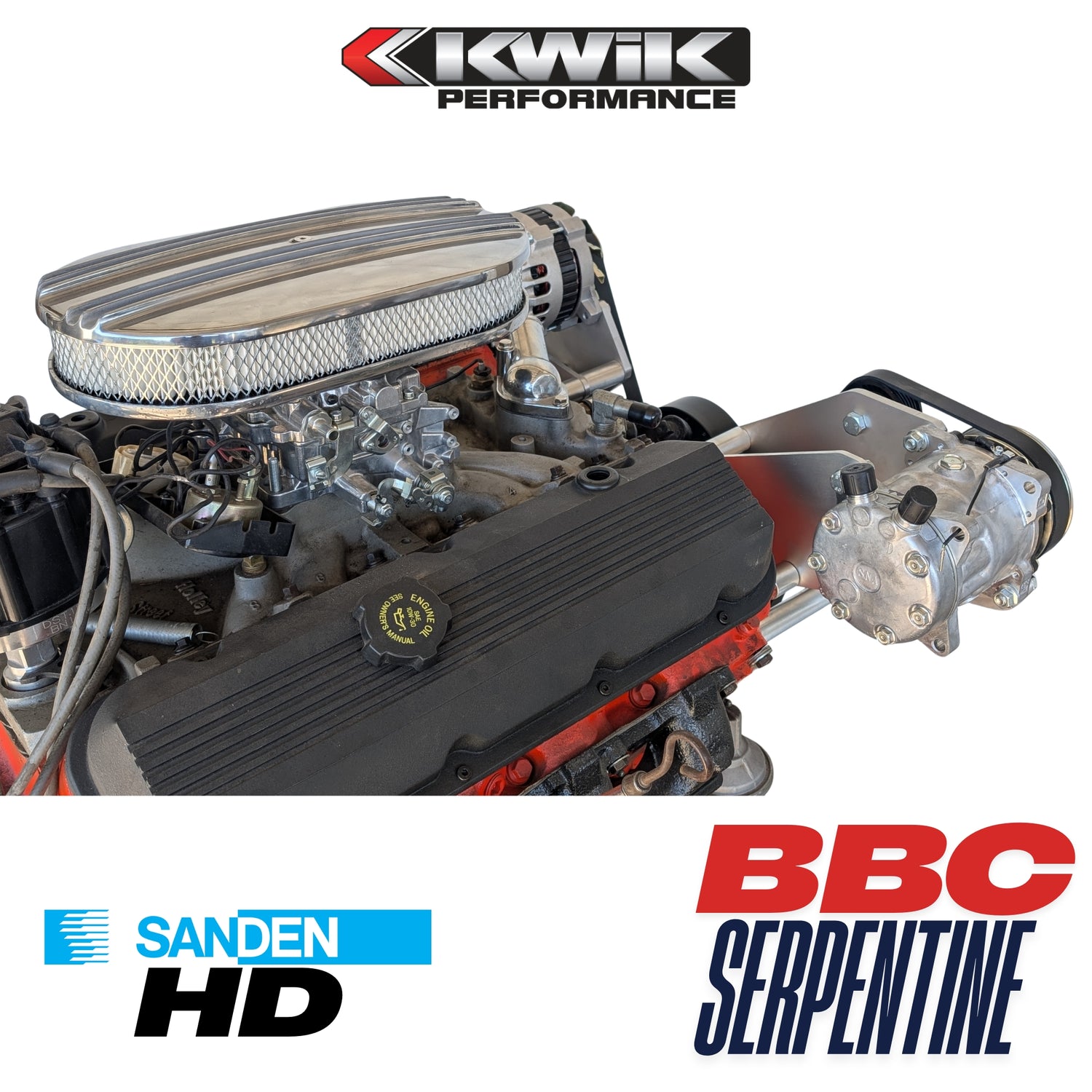

A: Yes. The accessories are mounted "high and tight" to the block. The A/C compressor is positioned on the passenger side, while the alternator and Type-2 pump are on the driver’s side. This layout provides maximum clearance for large steering boxes and tall aftermarket valve covers.
