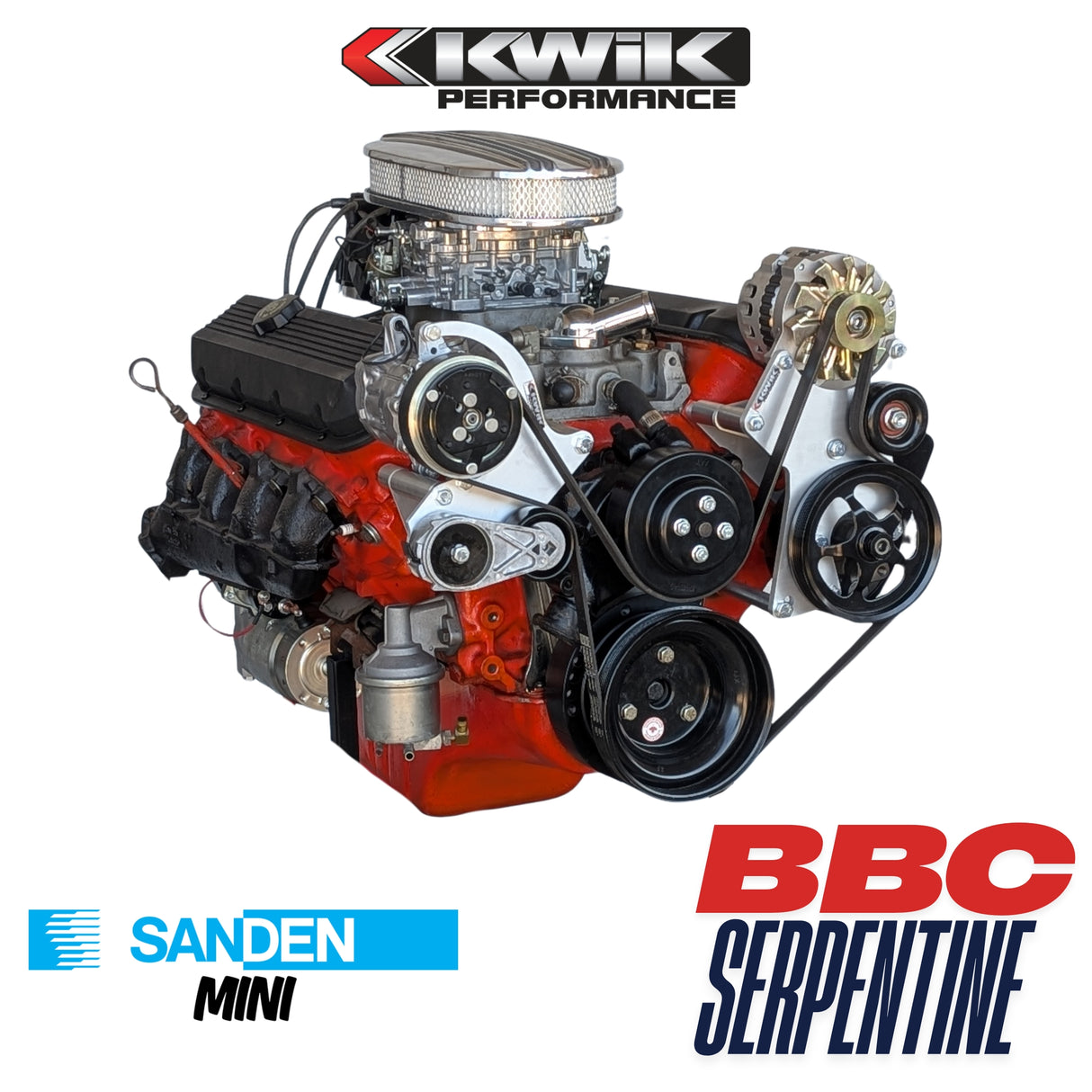

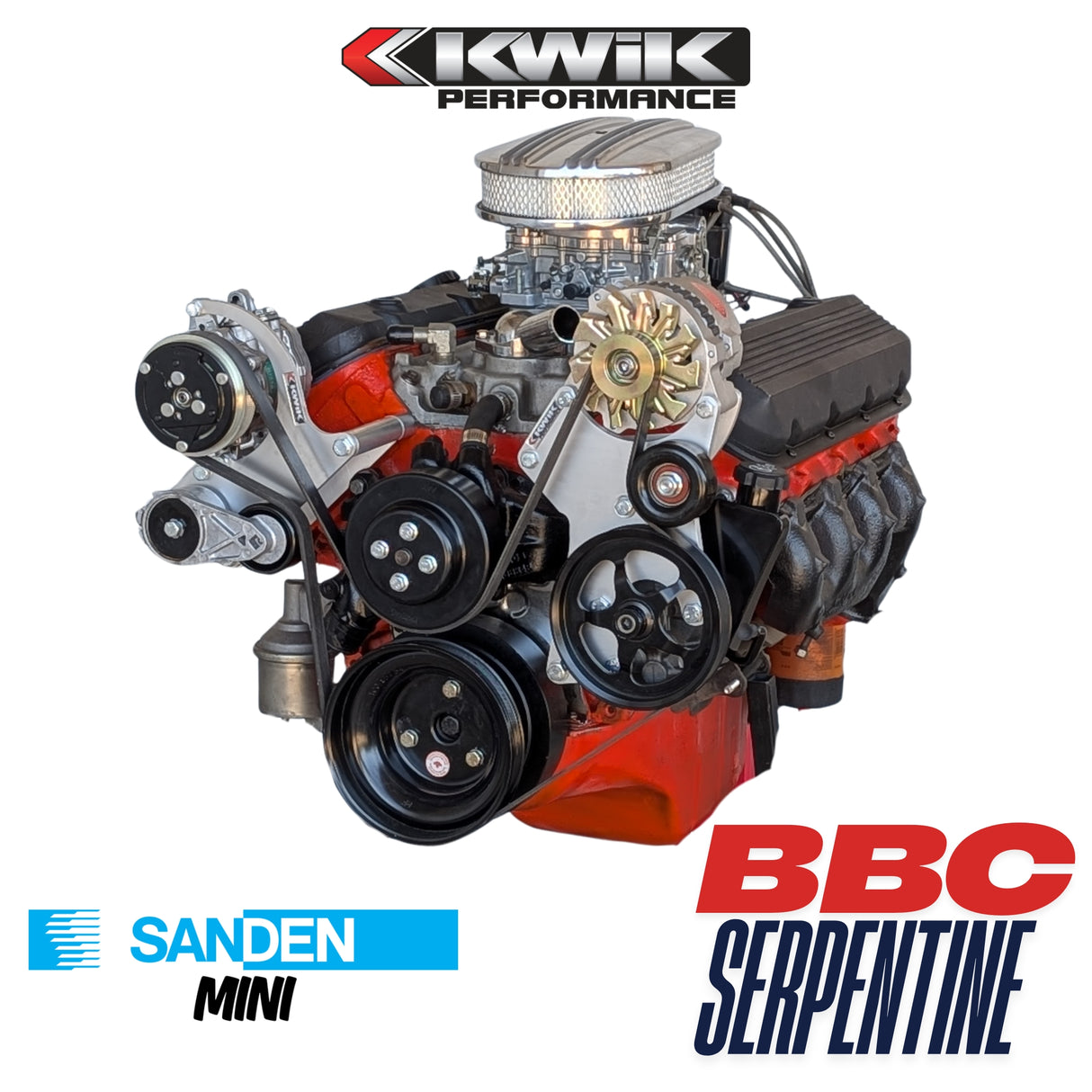

BBC Serpentine Package, AC-Alt/PS P-series pump (Sanden Mini) - K10653

What's included:

Brackets made of 6061-T6 aircraft grade aluminum (brushed satin finish)

All necessary spacers and zinc coated fasteners

Automatic spring-style tensioner

Idler Pulleys

Water Pump pulley

SBC crank pulley with BBC (1966-93) crank pulley adapter

*If your BBC engine is a (1994-2000): Call us and we will make sure you get the correct adapter

What else is required to complete the installation:

GM BBC engine (1966-1993) -or (1994-2000)*

366, 396, 402, 427, 454, 502, 572

Power Steering Pump - Truck (P-series) 1988-2013

• Edelmann 6023R P-series pump.
• For Hydroboost: Edelmann 6091R P-series pump.

P-series pump serpentine pulley 300-200.

Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.

Alternator rating and PS pulley diameters can change suggested lengths.

Always check tensioner marks for correct fitment.

Sanden “mini” AC compressor (also known as SD7B10). (Kwik Performance PN 10266-01).

This AC compressor also requires a manifold style fitting kit

-Straight Manifold (Kwik Performance PN K10550).

-Curved Manifold (Kwik Performance PN 342310).

CS130 (serpentine) Alternator (GM Truck 1990-1995)

We offer a PowerMaster 1-wire alternator: (Kwik Performance PN 47861).

A reverse rotation water pump off of a 1988-1999 454 engine. We offer a Gates replacement Water Pump: (Kwik Performance PN 44030).

This is considered a "long" pump and is 7 5/16" from block to fan mounting surface.

BBC Sanden Mini AC bracket Installation Video (YouTube)

BBC Sanden Mini AC bracket instructions (pdf)

BBC Alt/PS (P-series) bracket Installation Video (YouTube)

BBC Alt/PS (P-series) bracket instructions (pdf)

Gates Belt Chart (Part number and length)

General Product FAQs

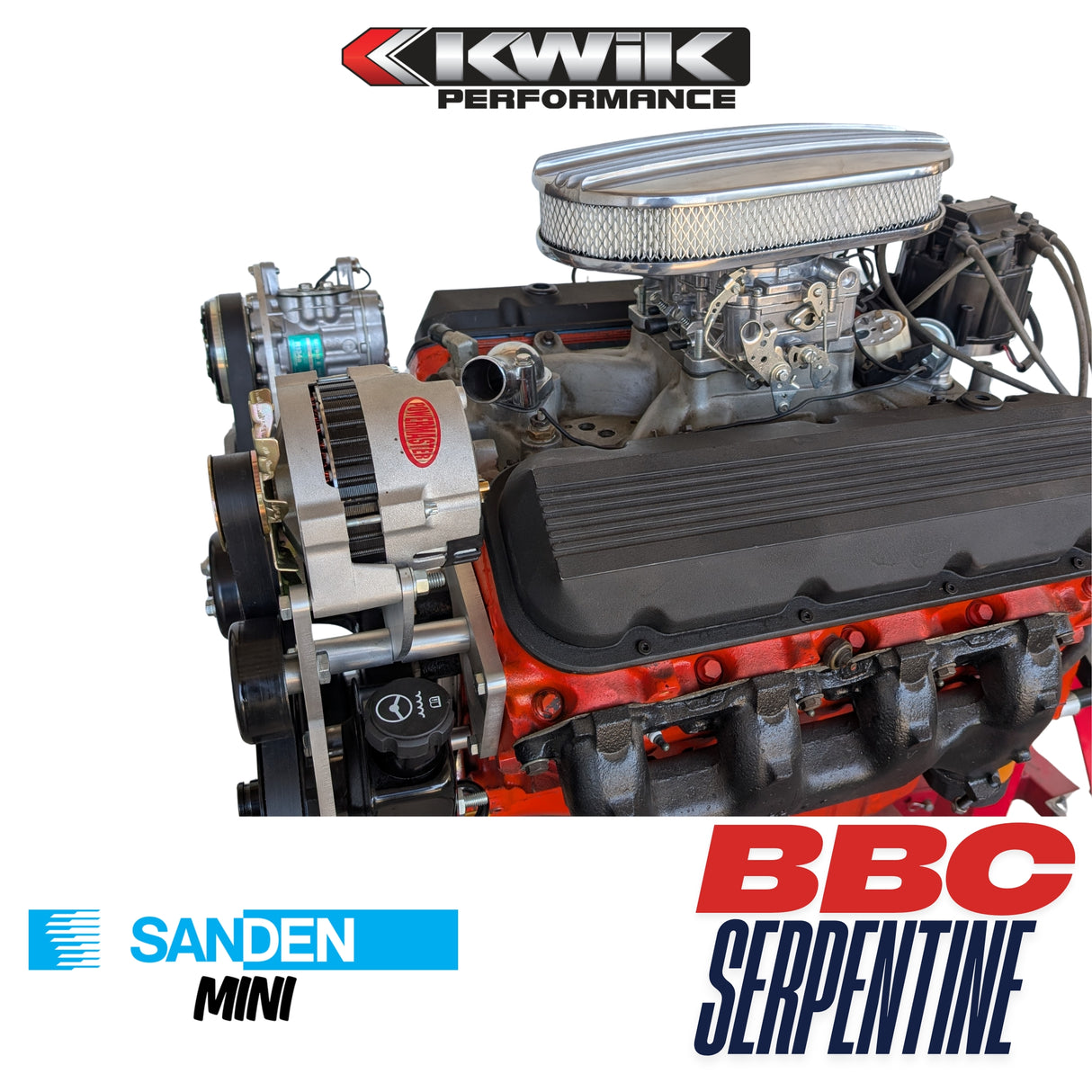

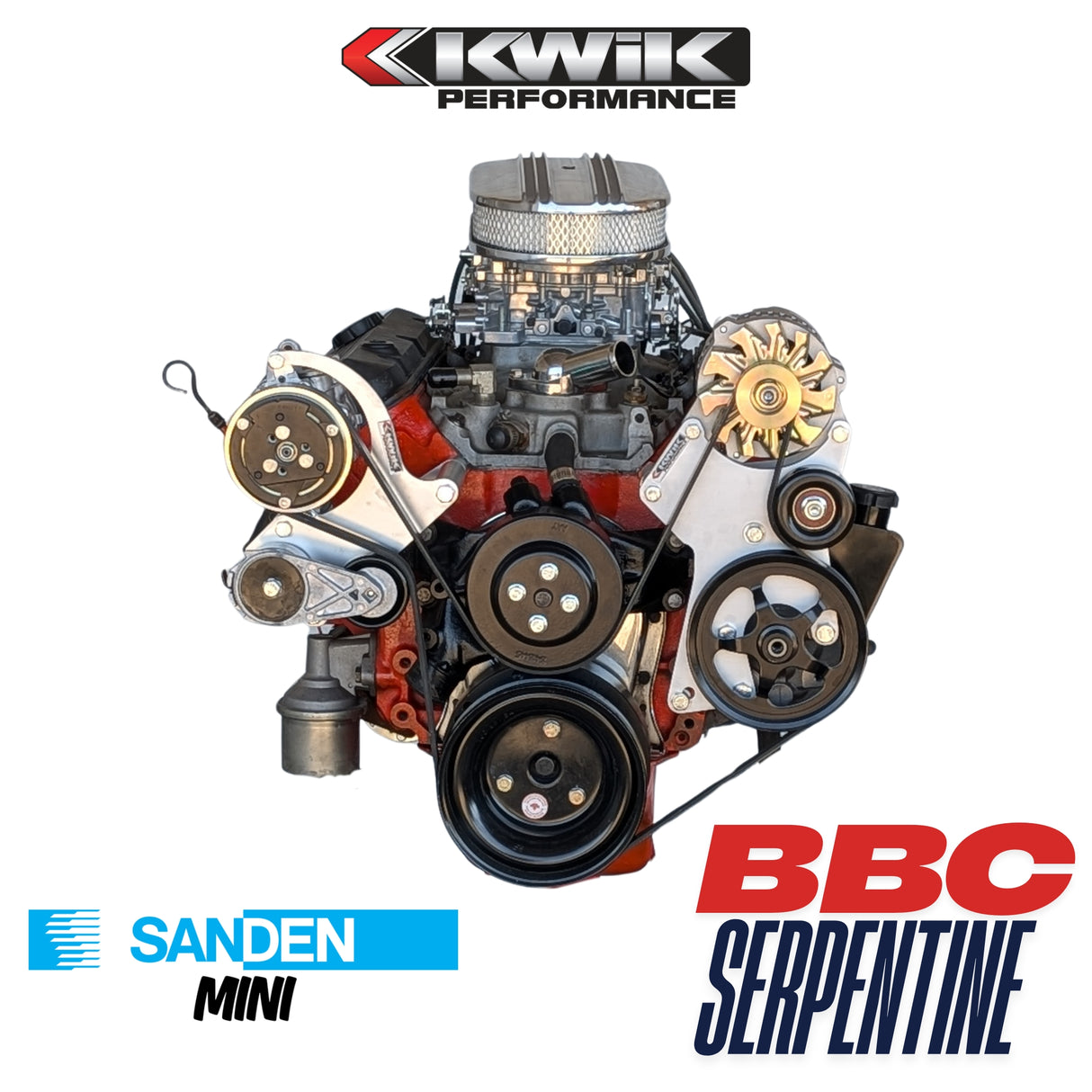

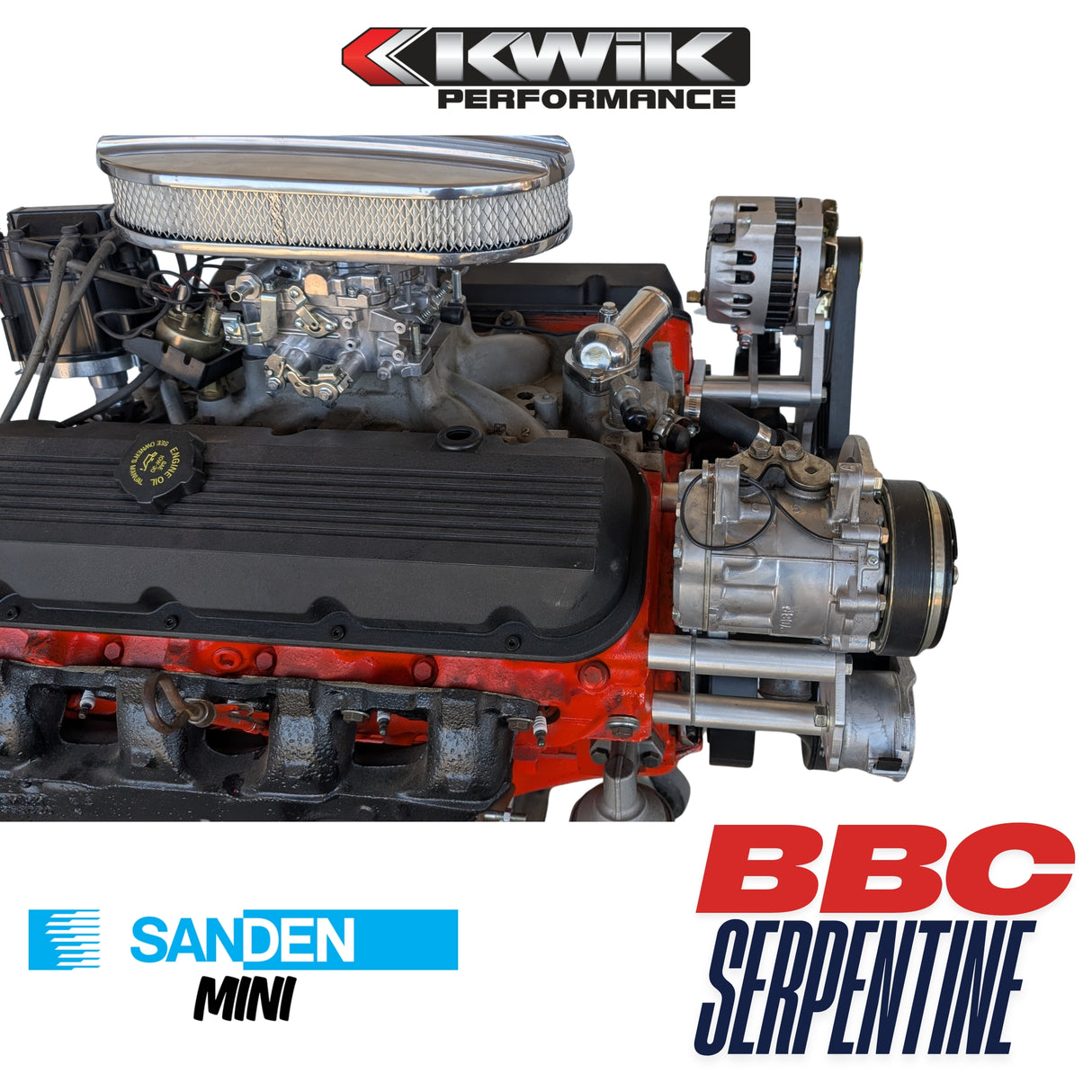

• What is the primary purpose of the K10653 bracket kit? This is a complete serpentine system that mounts a Sanden Mini SD7B10 (Model 7176) on the passenger side and a P-series power steering pump with an alternator on the driver side.
• What engines is this kit compatible with? It fits all Mark IV, Gen 5, and Gen 6* Big Block Chevy engines (standard or tall deck) from 366 to 572 cubic inches. *Gen 5 and Gen 6 harmonic balancer require a different crank pulley adapter. Call to have this switched out at no extra charge.
• How does this differ from the K10278 kit? The K10653 uses a P-series (truck style) power steering pump either regular or hydroboost style with two return ports, whereas the K10278 is designed for a Type-2 remote reservoir pump.
• Does this system clear tall valve covers? Yes, the layout is designed specifically to provide clearance for tall valve covers.

Compatibility & Installation

• Which AC compressor is required? You must use a Sanden Mini SD7B10 (Model 7176). A manifold-style fitting kit (straight or curved) is also required.

• Which power steering pump should I use? It requires a P-series (Truck) pump from the 1988–2013 era, such as the Edelmann 6023R. You will also need a matching 6-rib serpentine pulley.
• What water pump is needed? A reverse rotation water pump from a 1988–1999 454 engine is required. This "long" pump measures 7 5/16" from the block to the fan mounting surface.
• What size belt is required? The system runs on a six-rib serpentine belt. Suggested lengths and Gates part numbers are found in the included installation instructions.

Technical Specifications

• What material is used for the brackets? The brackets are made of 6061-T6 aircraft-grade aluminum with a brushed satin finish.
• What is included in the package? The kit includes aluminum brackets, all spacers, zinc-coated fasteners, an automatic spring-style tensioner, idler pulleys, a water pump pulley, and a crank pulley with adapter for 1966–1993 engines.
• What if I have a 1994–2000 BBC engine? Engines from 1994–2000 require a different crank adapter; Kwik Performance can provide the correct version if contacted directly.
