BBC Serpentine Package, AC-Alt/PS Type-2 pump (Sanden Mini) - K10278

What's included:

• Brackets made of 6061-T6 aircraft grade aluminum (brushed satin finish)
• All necessary spacers and zinc coated fasteners
• Power Steering Pump
• Automatic spring-style tensioner
• Idler Pulleys
• Water Pump pulley
• SBC crank pulley with BBC (1966-93) crank pulley adapter

*If your BBC engine is a (1994-2000): Call us and we will make sure you get the correct adapter

What else is required to complete the installation:

• GM BBC engine (1966-1993) or (1994-2000) 366, 396, 402, 427, 454, 502, 572
• Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
• Alternator rating and PS pulley diameters can change suggested lengths.
• Always check tensioner marks for correct fitment.
• Sanden Mini AC compressor (also known as SD7B10 (Kwik Performance PN 10266-01).
• This AC compressor also requires a manifold style fitting kit -Straight Manifold (Kwik Performance PN K10550). -Curved Manifold (Kwik Performance PN 342310).
• CS130 (serpentine) Alternator (GM Truck 1990-1995) - We offer a PowerMaster 1-wire alternator: (Kwik Performance PN 47861).

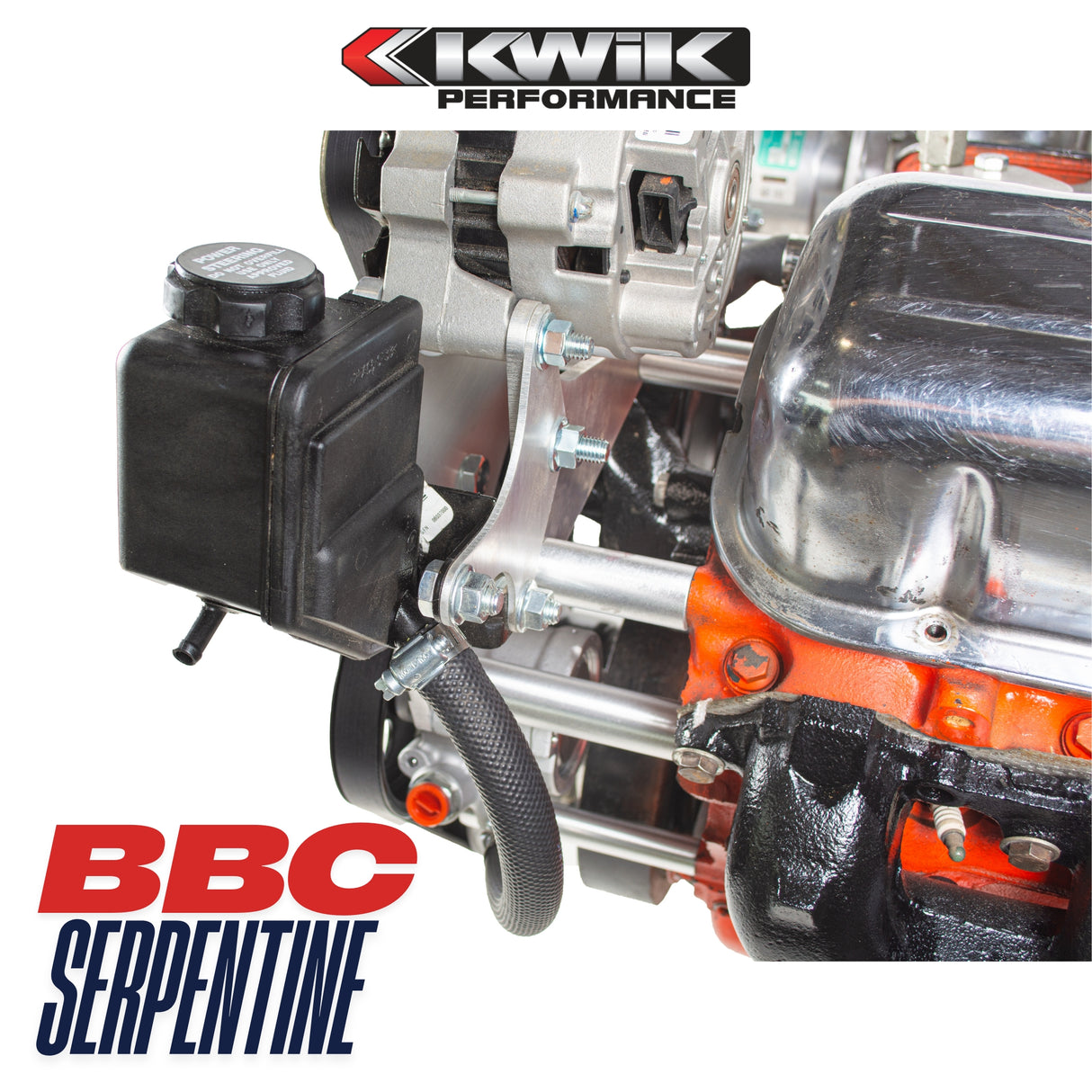

• Remote-style Power Steering Reservoir. We offer a remote reservoir (Kwik Performance PN K10267). We also have a reservoir mounting bracket to attach it to your Alt/PS bracket (Kwik Performance PN K10271)
• A reverse rotation water pump off of a 1988-1999 454 engine. Consider our Gates replacement Water Pump: (Kwik Performance PN 44030). This is considered a "long" pump and is 7 5/16" from block to fan mounting surface.

BBC Sanden Mini AC bracket Installation Video (YouTube)

BBC Sanden Mini AC Installation Instructions (pdf)

BBC Alt/PS (Type 2) Installation Video (YouTube)

BBC Alt/PS (Type 2) Installation Instructions (pdf)

Big Block Spotters Guide (Adobe pdf File)

Gates Belt Chart (Part number and length)

General Product FAQs

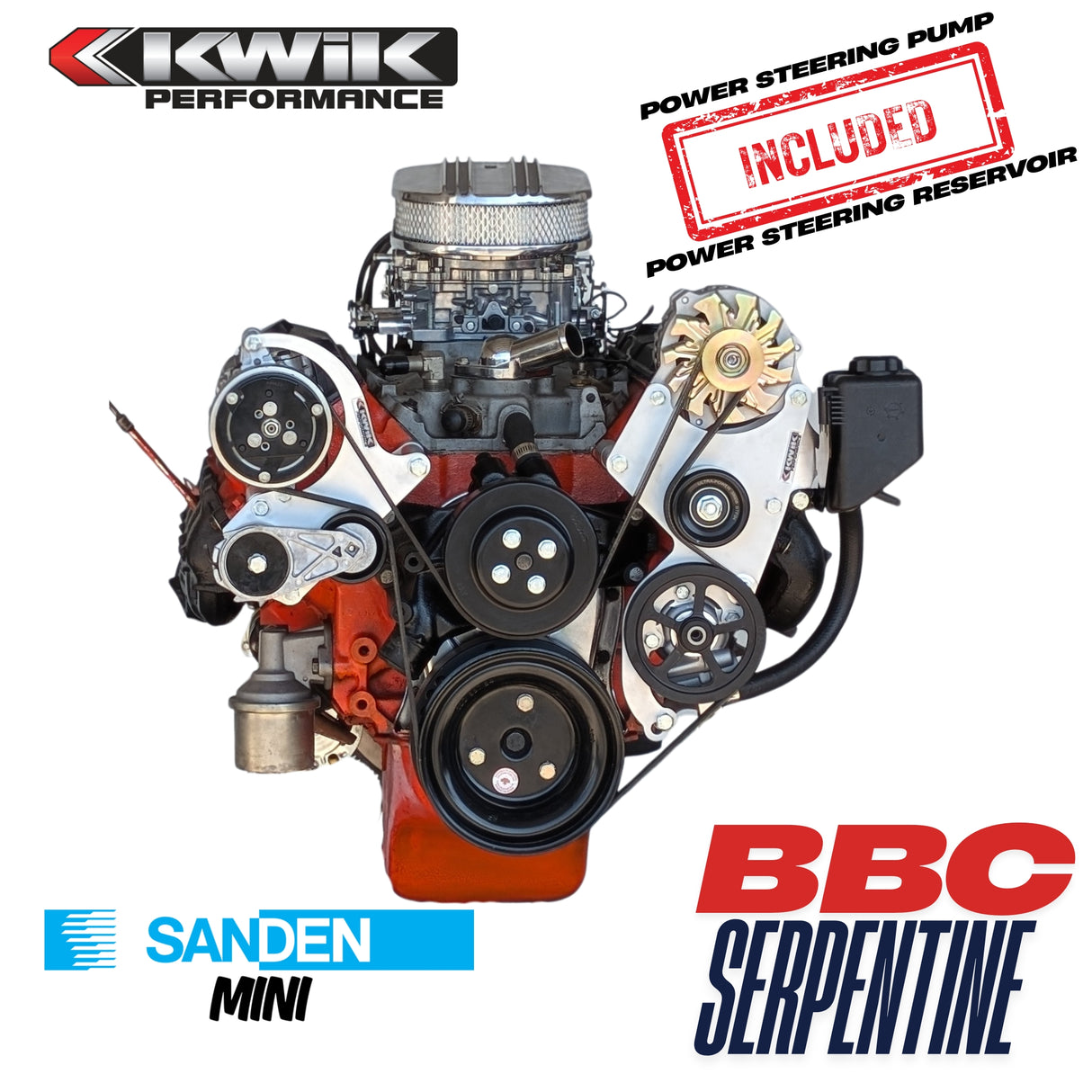

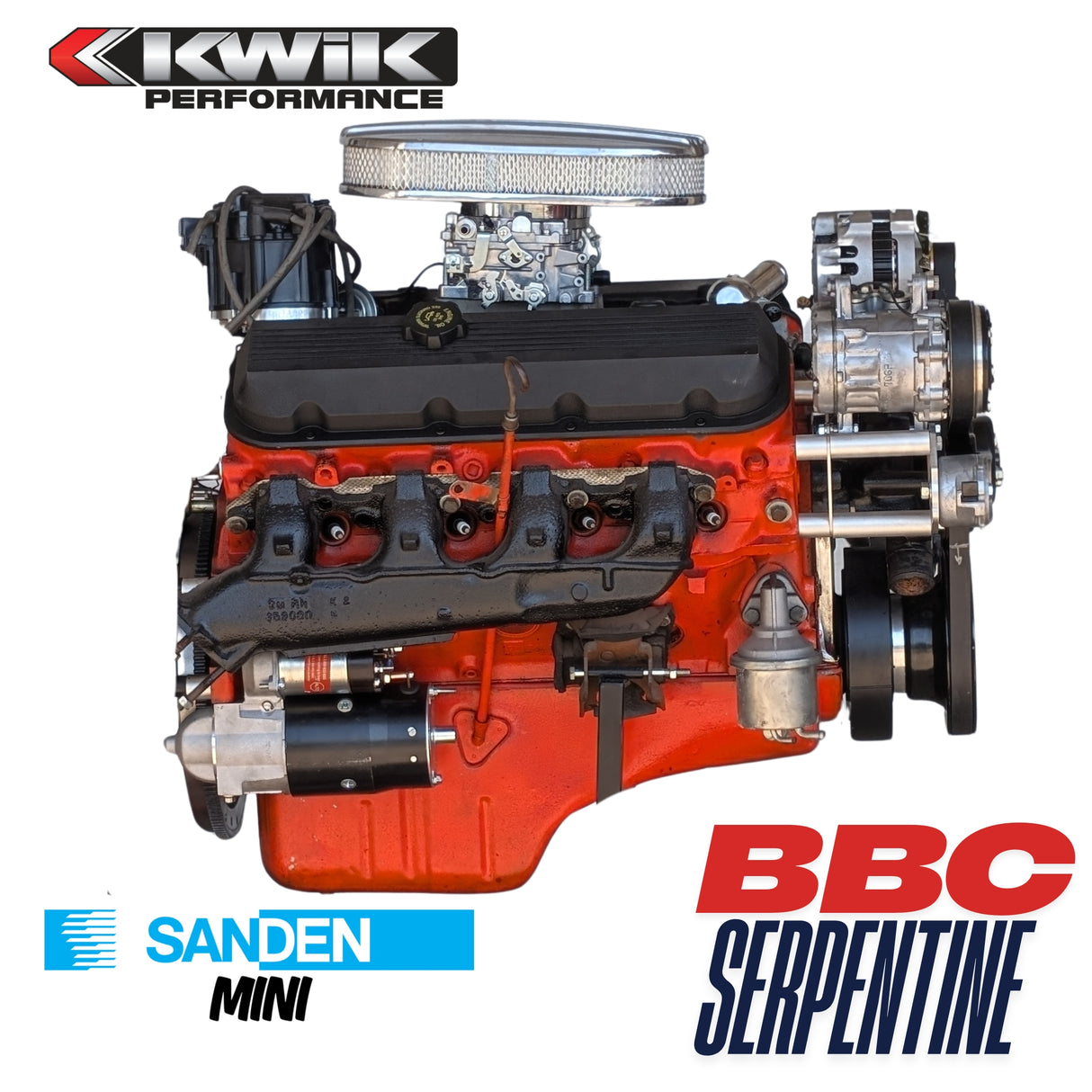

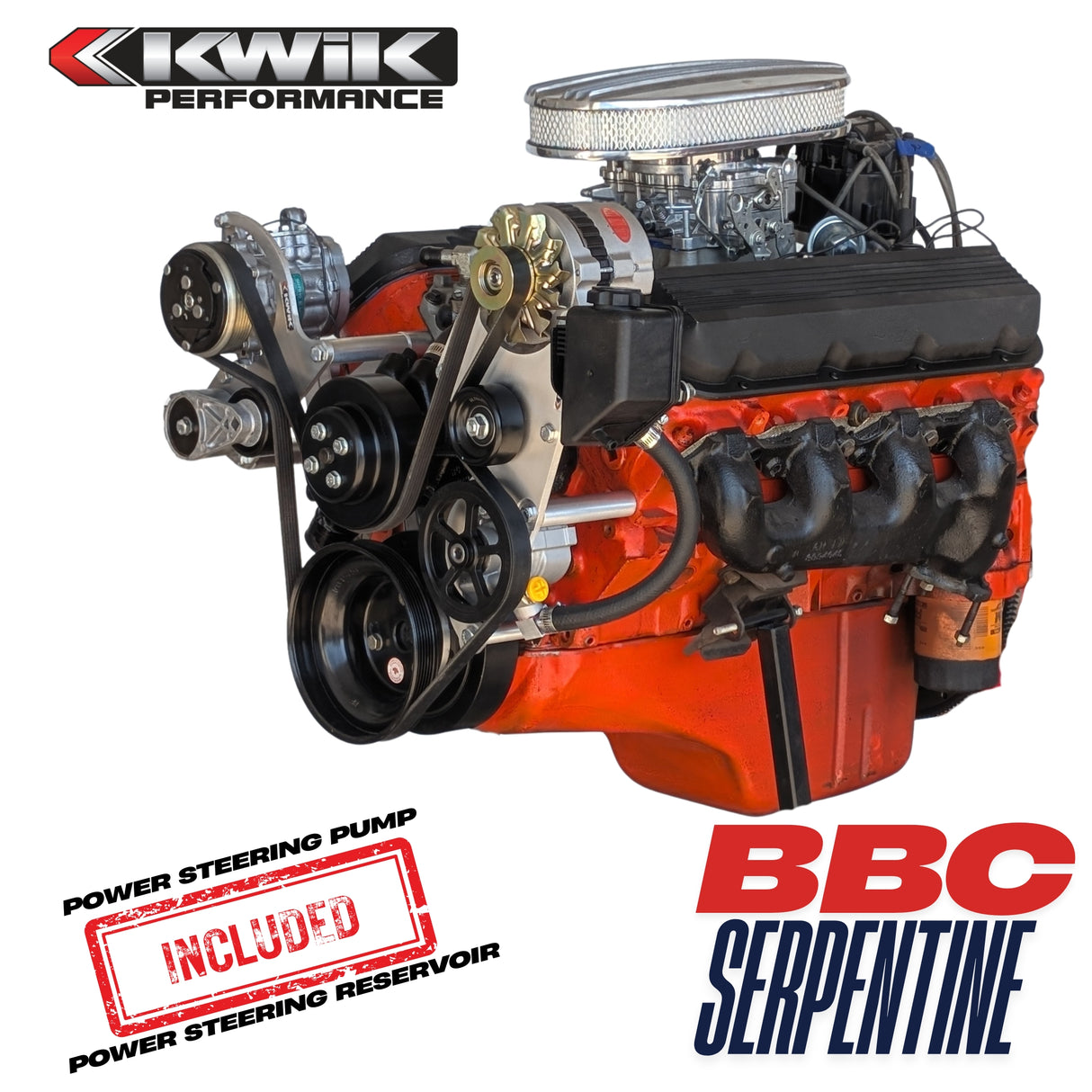

• What is the primary purpose of the K10278 bracket kit? It is a complete serpentine upgrade system that mounts a Sanden Mini (SD7B10) AC compressor on the passenger side and a Type-2 power steering pump with an alternator on the driver side.
• What engines is this kit compatible with? It fits all Mark IV, Gen 5, and Gen 6* Big Block Chevy engines (standard or tall deck) ranging from 366 to 572 cubic inches.

*Gen 5 and Gen 6 harmonic balancer require a different crank pulley adapter. Call to have this switched out at no extra charge.

• Does this kit clear tall valve covers? Yes, the brackets are designed to provide clearance for tall valve covers, making them ideal for high-performance builds.
• Why does this kit use a Type-2 power steering pump? The Type-2 pump (remote reservoir style) is more compact than P-series pumps, allowing the alternator and pump to be tucked in tight for maximum steering box clearance.

Compatibility & Installation

• Which AC compressor is required? You must use a Sanden Mini SD7B10 (Model 7176) compressor. This compressor also requires a manifold-style fitting kit (either straight or curved).
• What water pump is needed for this system? A reverse rotation water pump from a 1988–1999 454 engine is required. This is considered a "long" pump, measuring 7 5/16" from the block to the fan mounting surface.  Here’s the water pump we offer:  https://www.kwikperf.com/collections/water-pumps/products/gates-bbc-water-pump-44030
• What alternator should I use? The kit is designed for a CS130 (serpentine style) alternator typically found on 1990–1995 GM trucks.  We offer: https://www.kwikperf.com/collections/alternators/products/powermaster-alternator-for-sbc-bbc-engines-140-amp-47861
• Is a specific belt size recommended? The system uses a six-rib belt. While the exact length depends on your alternator and pulley size our installation instructions have suggested lengths and Gates part numbers.

Technical Specifications

• What material are the brackets made of? The plates are precision-machined from 6061-T6 aircraft-grade aluminum with a brushed satin finish.
• What is included in the package? The package includes aluminum brackets, all spacers and zinc-coated fasteners, a power steering pump, an automatic spring-style tensioner, idler pulleys, a water pump pulley, and a crank pulley with adapter.
• What if I have a 1994–2000 BBC engine? The standard kit includes a crank pulley adapter for 1966–1993 engines. If you have a 1994–2000 engine, you should contact Kwik Performance to ensure you receive the correct adapter for your specific crank.
