LS Wide Mount Mini AC Bracket - Camaro F-Body (98-02) / GTO (04-06) - K10674

What's included:

Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)

All necessary spacers and zinc coated fasteners

Automatic spring-style belt tensioner

Idler Pulley

What else is required to complete the installation:

GM LS Gen 3 or 4 engine with Camaro F-Body (1998-2002) or GTO (2004-06) harmonic balancer and water pump

Six-rib belt, see our included installation instructions for suggested lengths and Gates part numbers.

Complete Gates belt chart available.

Alternator, rating and PS pulley diameters can change suggested lengths.

Always check tensioner marks for correct fitment.

Sanden Mini SD7B10 7176 AC compressor

LS F-Body Wide Mini AC Installation Video (YouTube)

LS F-Body Wide Mini AC Instructions (pdf)

Gates Belt Chart (Part number and length)

General Product FAQs

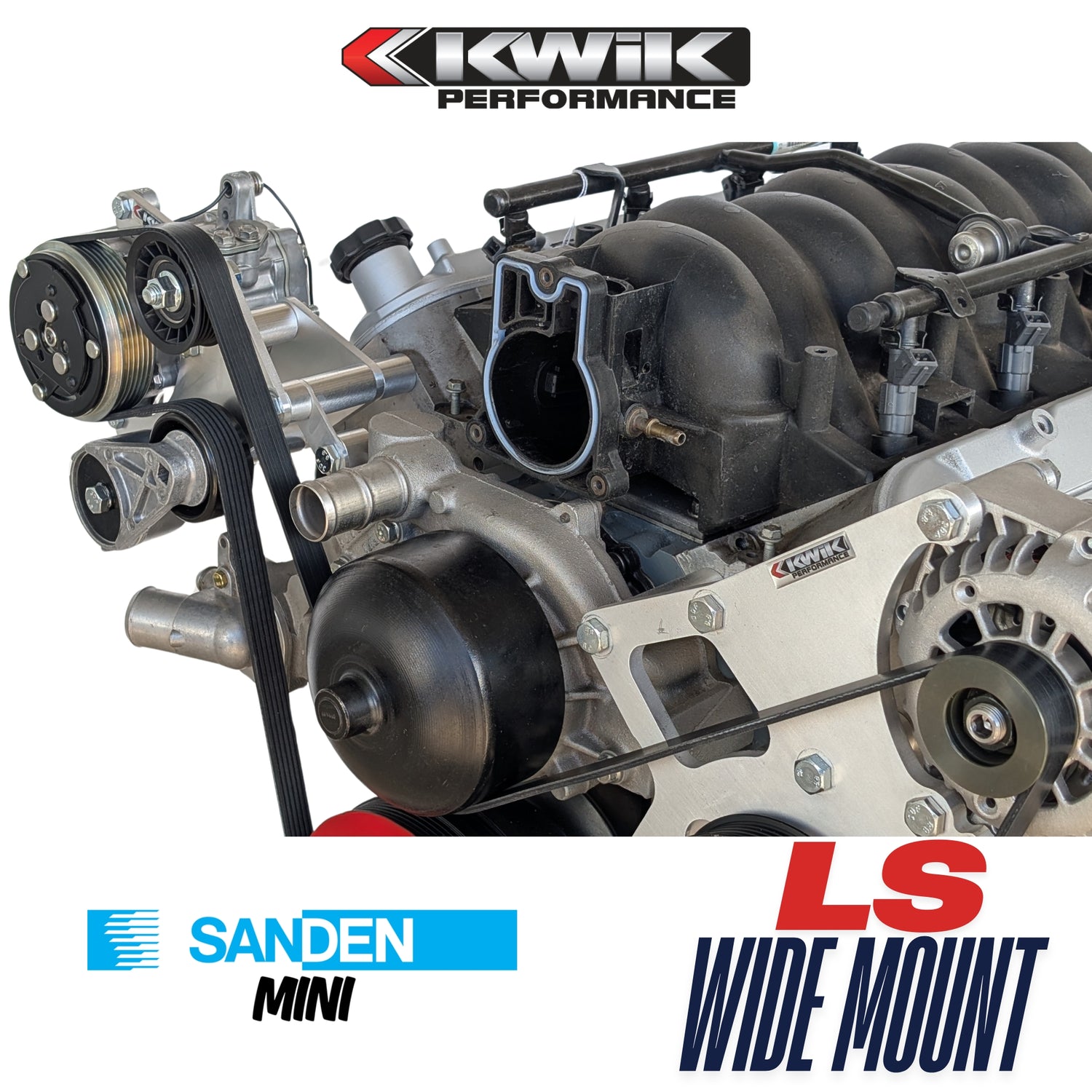

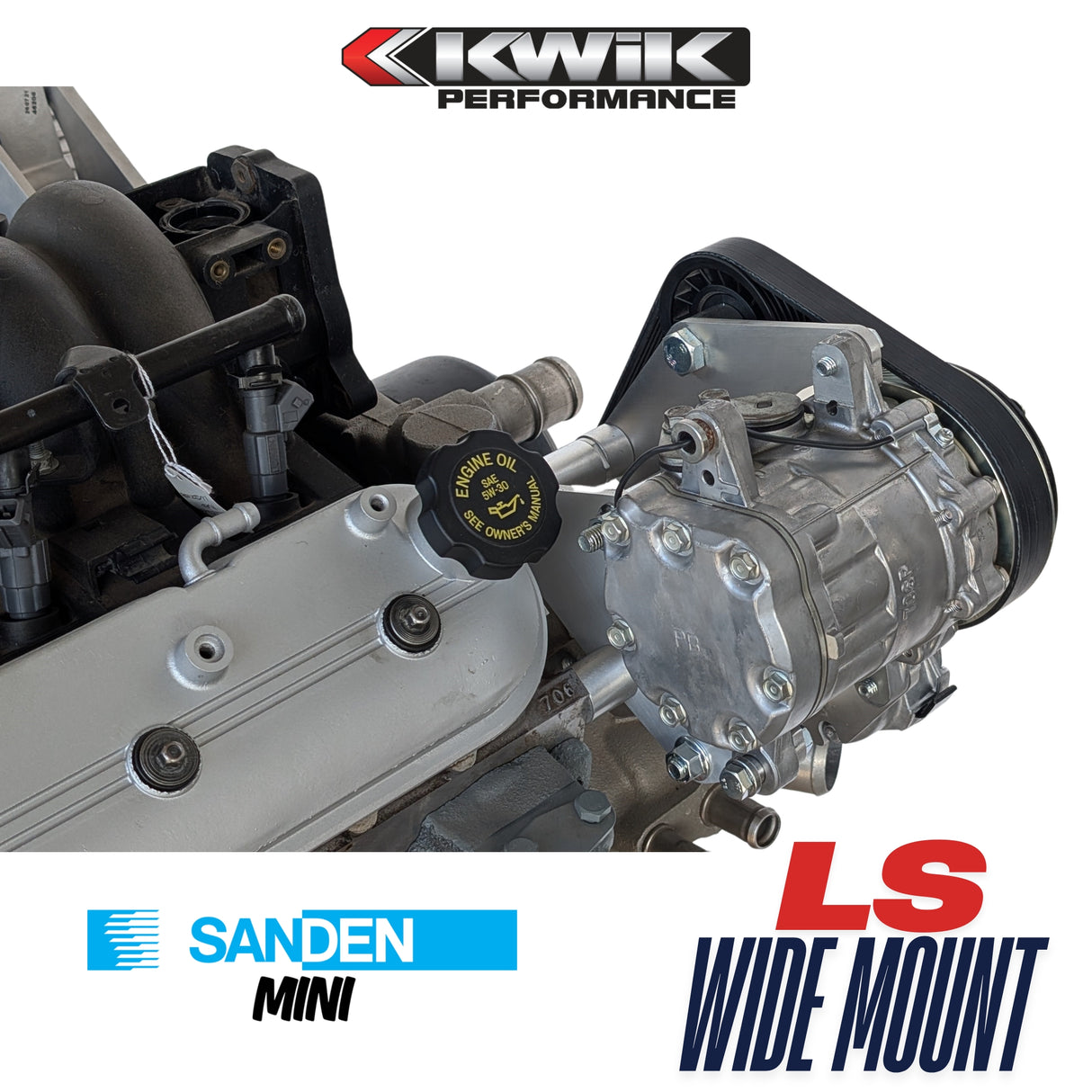

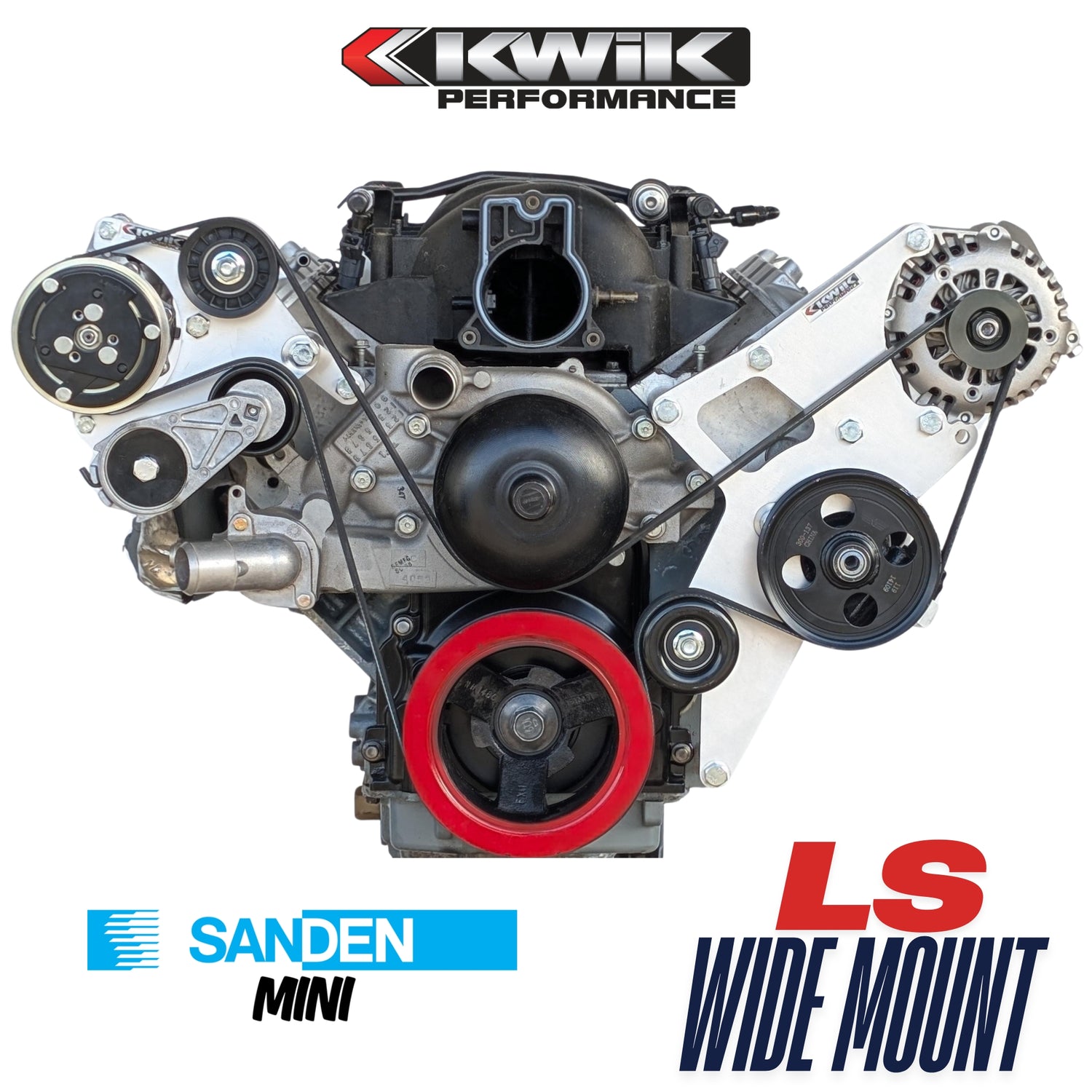

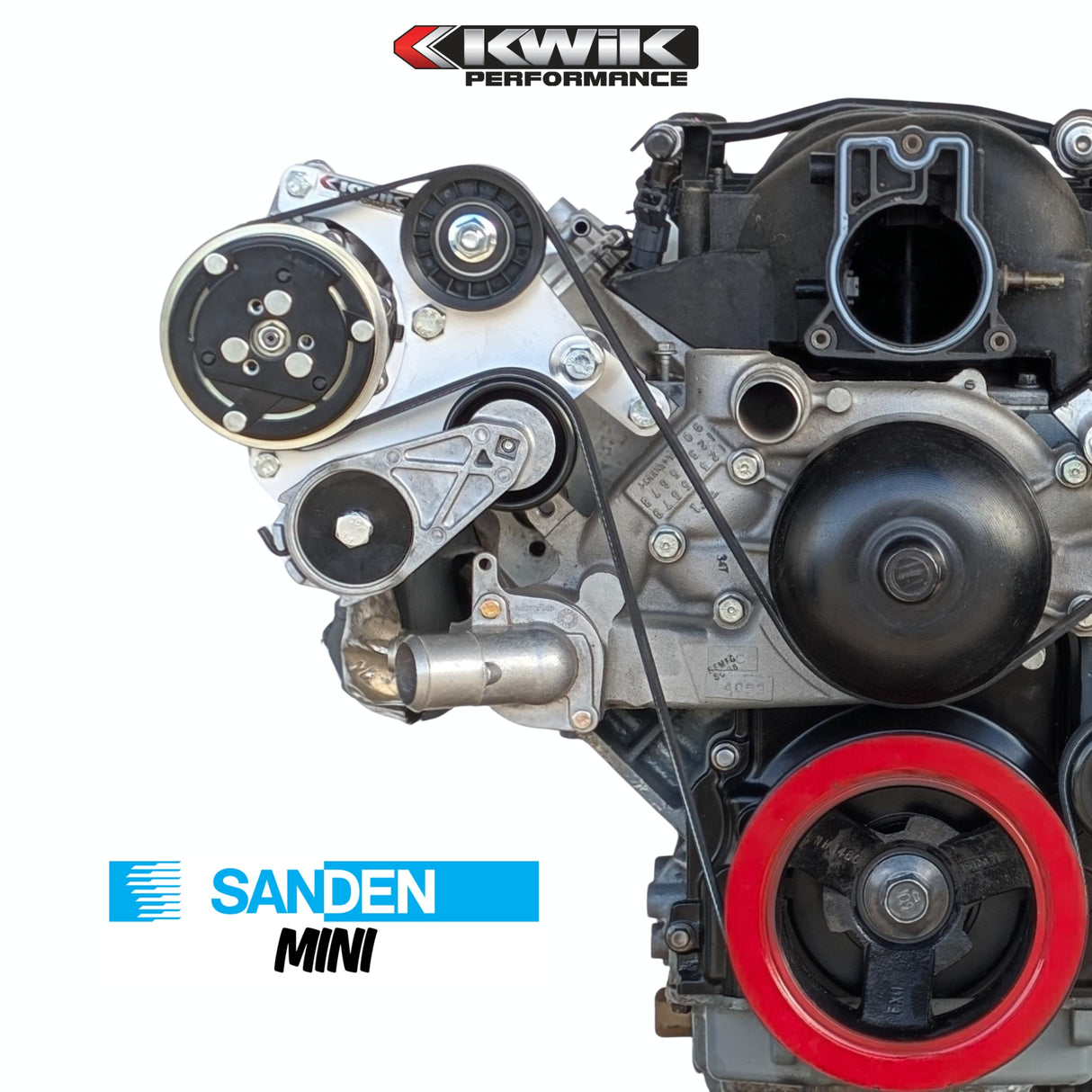

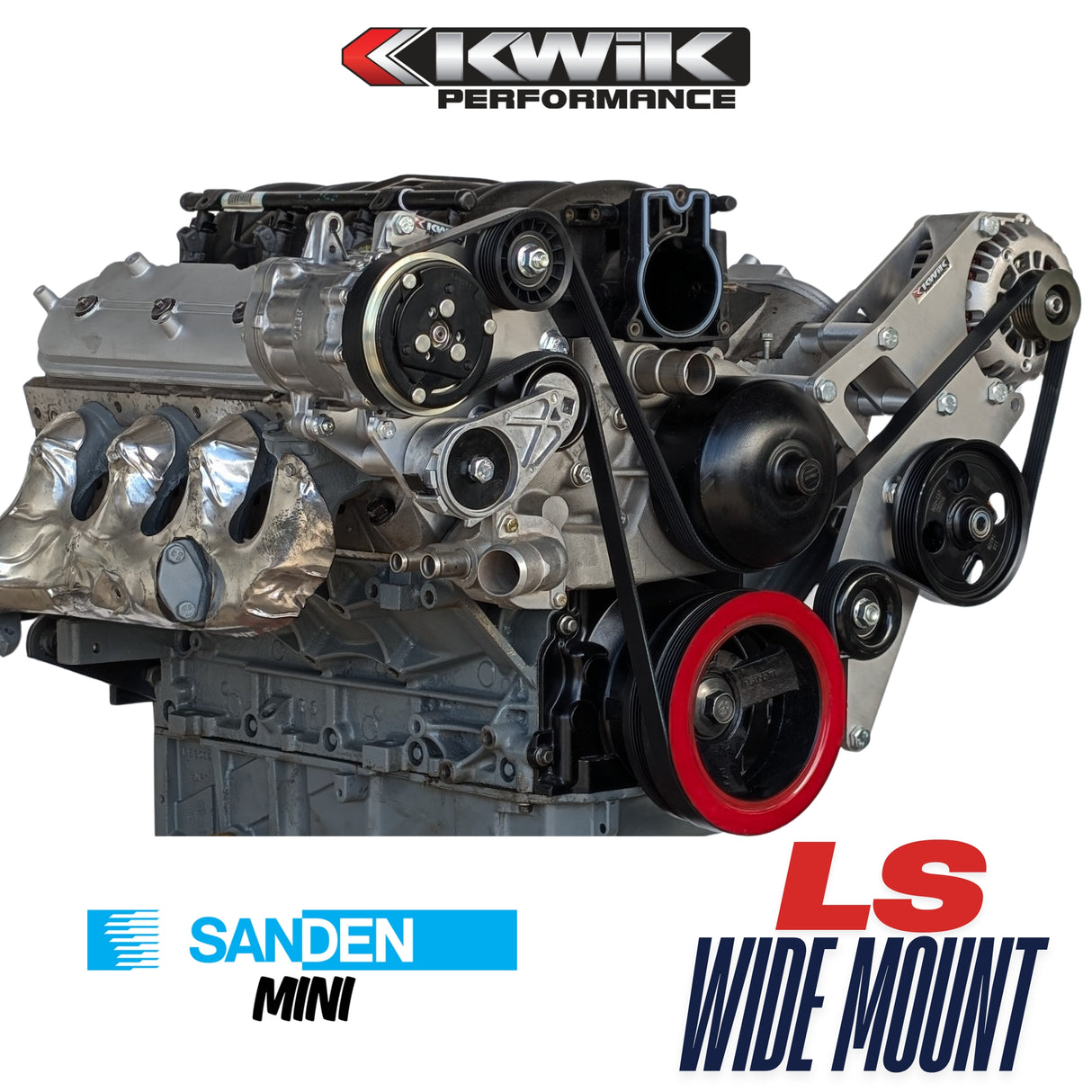

• What is the primary purpose of the K10674 bracket kit? It is a wide-mount AC relocation bracket that mounts a Sanden Mini compressor (SD7B10) just outside the passenger-side valve cover.
• What engines and vehicle spacings are this kit compatible with? This kit is compatible with GM LS Gen 3 or 4 engines using Camaro/Firebird F-Body (1998-2002) or GTO (2004-06) harmonic) balancer and water pump spacing.
• Why would I choose a "Wide Mount" configuration? By locating the compressor outside the cylinder head, it solves frame and chassis clearance issues common in swaps for 1st-3rd Gen Camaros, Chevelles (A-body), S10 pickups, and 1955+ Chevy trucks.
• What is the difference between K10674 and K10471? The K10674 is specifically for the compact Sanden Mini (7176) compressor, while the K10471 is built for the larger Sanden HD (508/709 style) compressors.

Compatibility & Installation

• Which AC compressor must be used with this bracket? You must use a Sanden Mini SD7B10 (Model 7176). It is not compatible with Sanden 508/709 style compressors.
• What belt size is required? The kit uses a six-rib serpentine belt. Kwik Performance installation instructions provide suggested lengths and Gates part numbers based on your specific alternator and pulley setup.
• Can I use my factory F-body or GTO alternator bracket with this? Yes, this AC bracket is designed to work alongside the factory alternator/power steering bracket or the Kwik K10167 Alt/PS bracket.

Technical Specifications

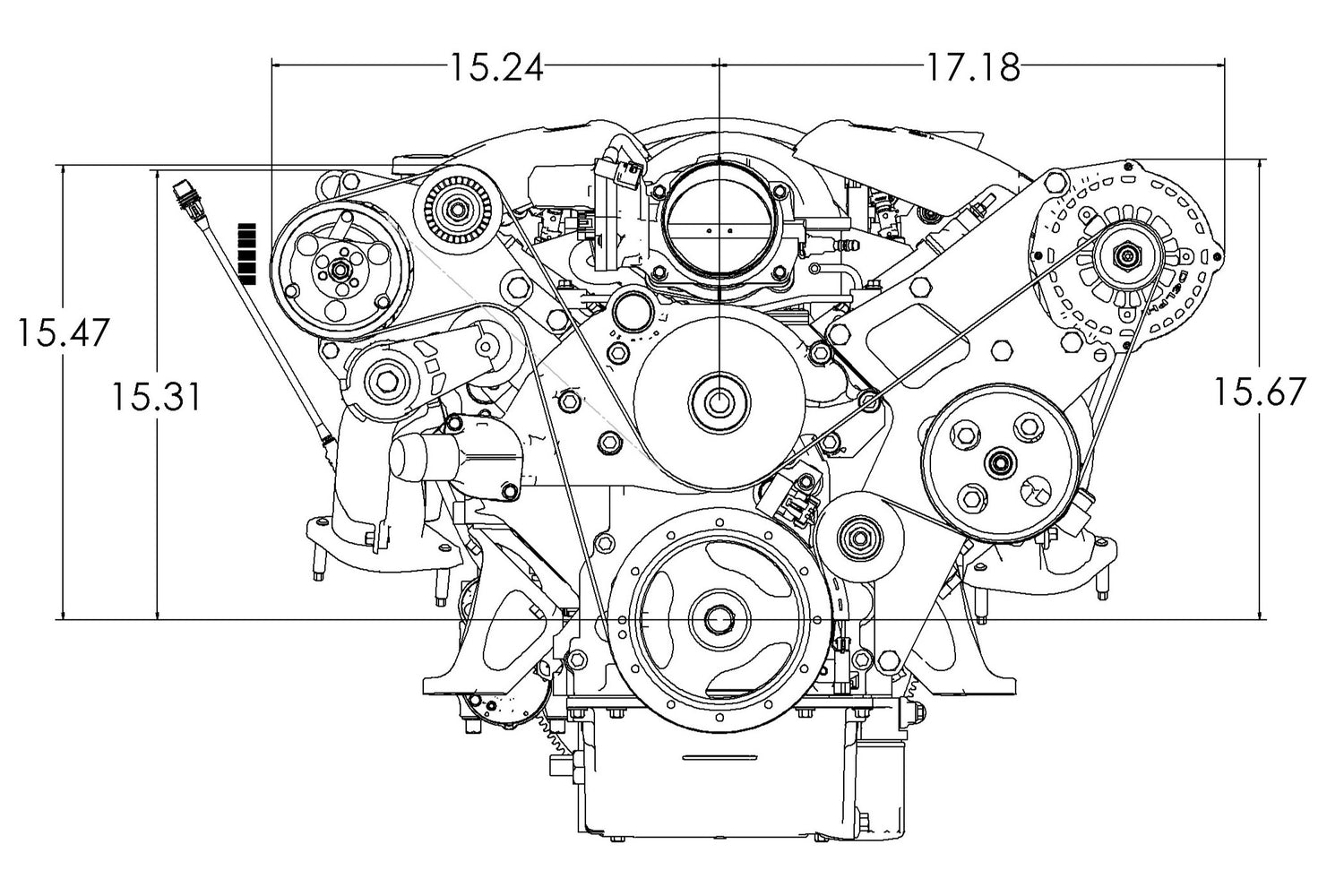

• What are the dimensions of the installed bracket? The overall width is approximately 15.24” from the center of the engine to the outer edge of the compressor.
• What material is the bracket made from? The plates are machined from 6061-T6 aircraft-grade aluminum with a brushed satin finish.

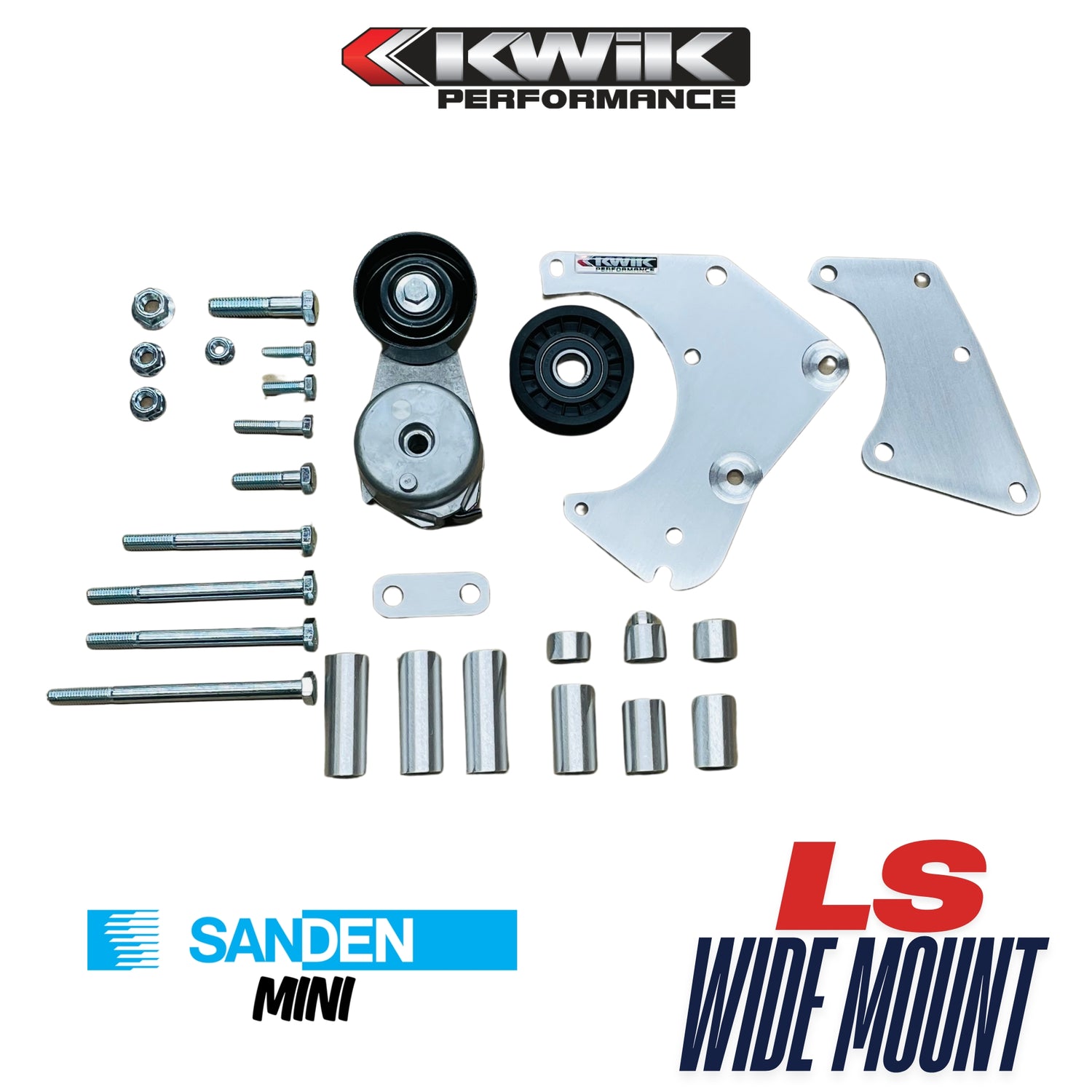

• What is included in the box? The kit includes mounting plates, spacer tubes, zinc-coated fasteners, an automatic spring-style tensioner, and an idler pulley.
