Kwik Performance Inc.  |  SKU: K10669

AC Hose Kit (90-93) OBS Chevy - Sanden Mini - K10669

$250.00 USD
Shipping calculated at checkout.

Description

Bolt-on A/C Hose Kit for 1990–1993 OBS Chevy Trucks (Sanden Mini Compressor)

Easily connect your Sanden Mini SD7B10-7176 A/C compressor to the factory GM A/C system with this complete bolt-on kit. Designed specifically for 1990–1993 OBS Chevy trucks originally equipped with R12 A/C systems, this kit uses pre-bent hardlines and pre-crimped hoses for a factory-style fit and hassle-free installation.

This kit requires a condenser with 2 male fittings. The 1990 was a changeover year, if your truck has one male and female connector at the condenser check out our AC Hose Kit (88-90) OBS Chevy - Sanden Mini - K10707.

Key Features:

  • Direct connection to the factory A/C system, no need to source fittings or have hoses custom-crimped.
  • Includes a trinary switch pre-installed in the hardline for compressor protection and optional fan control. Can be wired as a trinary or simple binary switch.
  • Pre-bent hardlines prevent hose rub and ensure long-lasting durability.
  • New drier included (keep sealed until ready to pull vacuum).
  • Service ports on both suction and discharge lines for easy charging and diagnostics.
  • Designed for a factory-style installation with clear, photo-based instructions and wiring diagrams.

Compatibility:

  • Works with 1991–1993 OBS Chevy trucks and some 1990 models.
  • Requires a Sanden Mini SD7B10-7176 compressor.
  • Your condenser must have two male fittings.

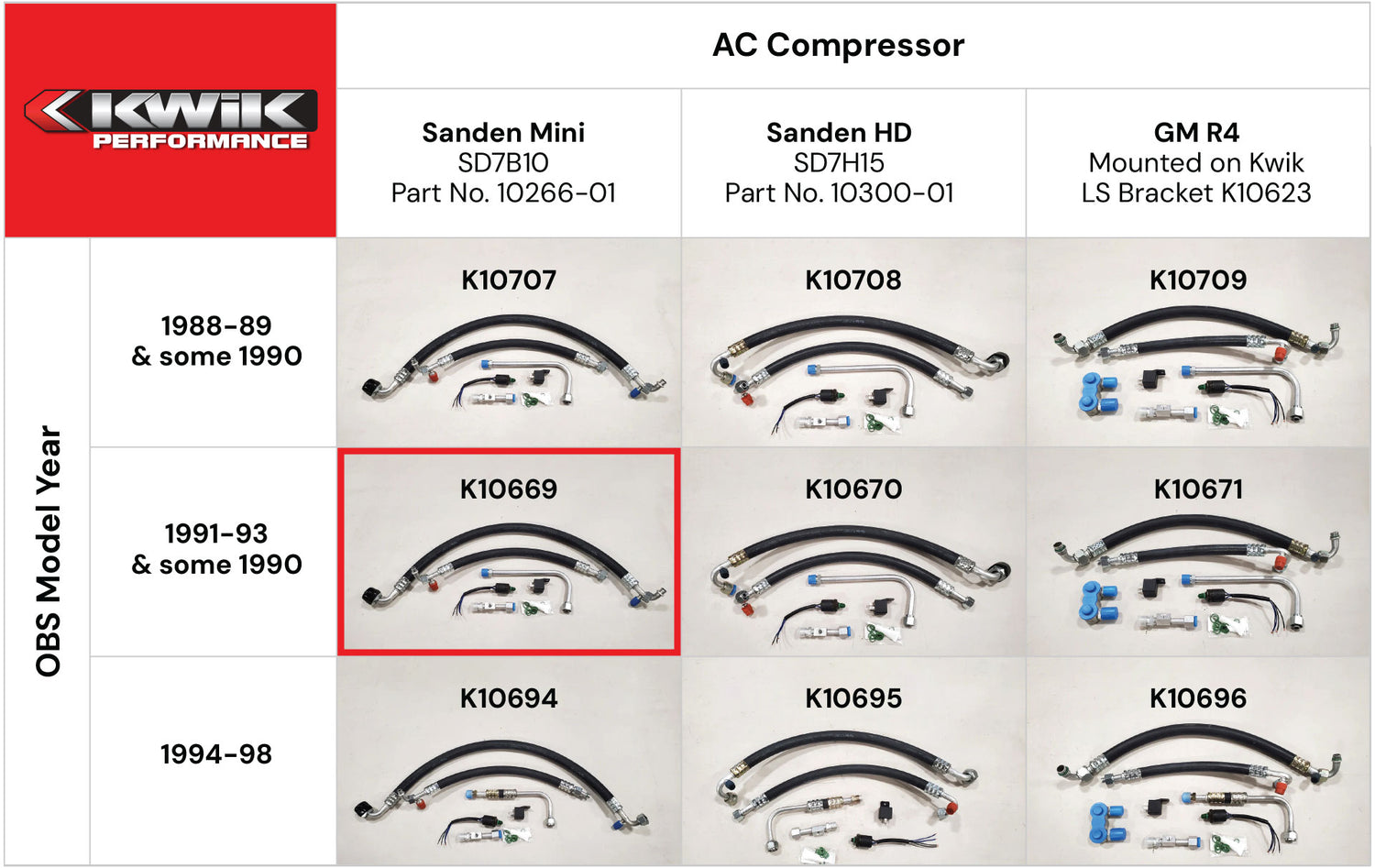

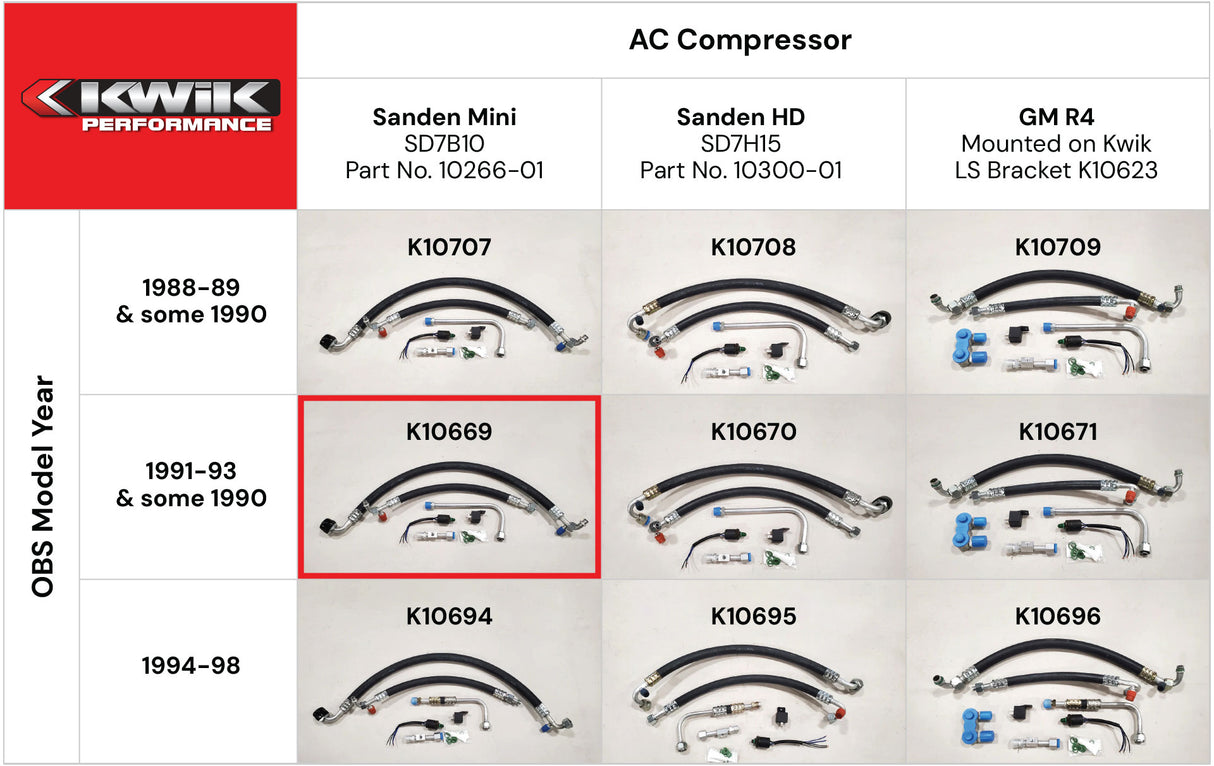

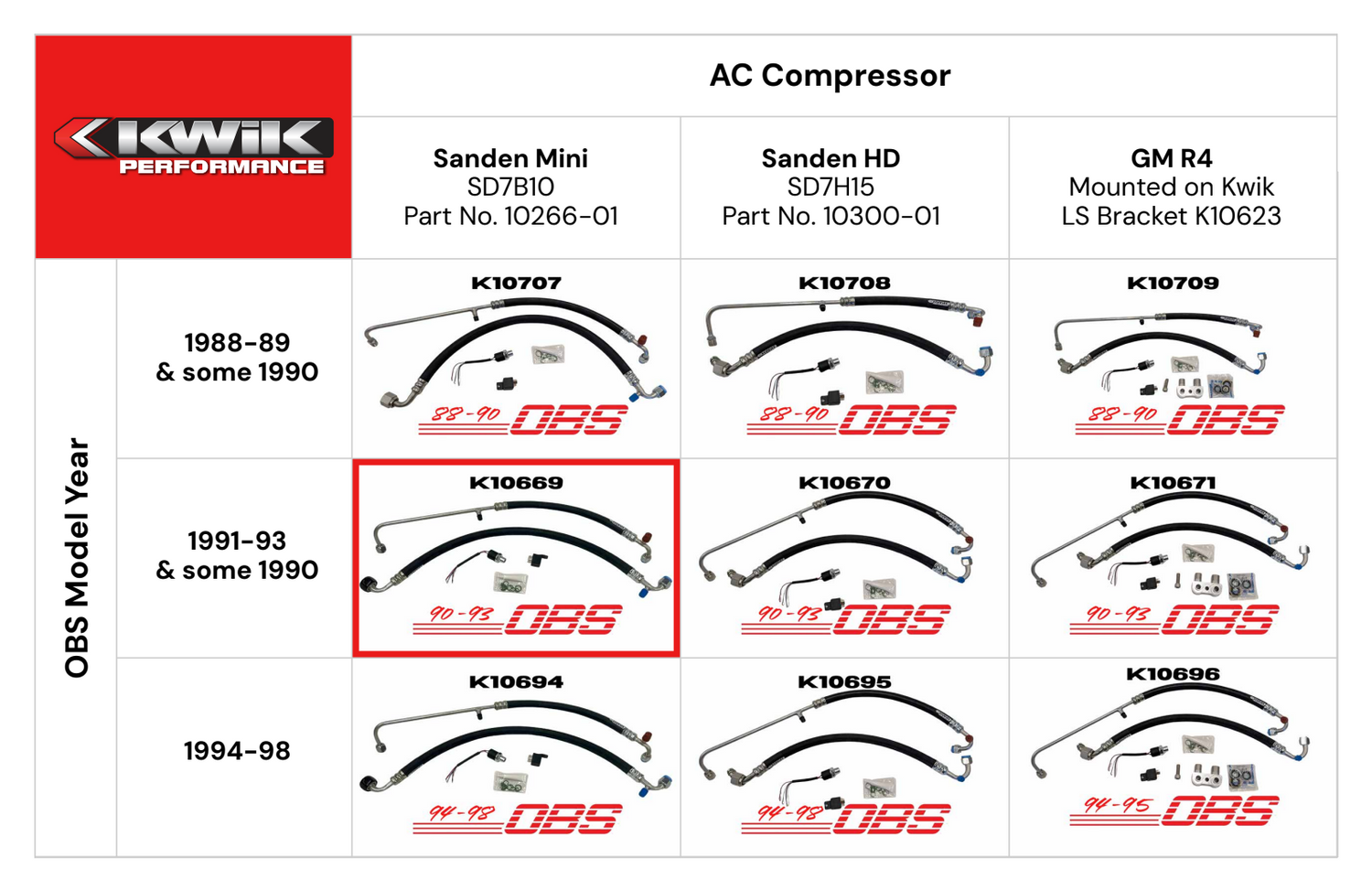

Alternate Kits (Based on Compressor):

  • Sanden HD Compressor: Use Kit K10670.
  • GM R4 Compressor: Use Kit K10671.
  • GM R4 to Sanden Mini Conversion: Use Kit K10606 (requires straight manifold fitting kit, Kwik Part #K10550).

Bracket Compatibility (requires Kwik 90° manifold fitting kit, Part #342310):

  • LS High & Tight Mount: K10780 A/C Bracket – Truck (’99–’13) / Camaro (’10–’15)
  • Big Block Chevy M4 System: K10278 (Type-2 PS Pump) or K10653 (P-Series PS Pump)
  • Small Block Chevy Serpentine System: K10323

Chevy OBS condenser guide

What's Included / Other Requirements

Hose kits include:

#10 suction hose (1/2” ID, 1” OD)

-90 degree swivel from receiver/drier

-90 degree swivel with service port to compressor

#8 high pressure hose (13/32” ID, 29/32”OD)

-90 degree swivel with service port from compressor

-Straight swivel connects to safety switch fitting

-Safety switch fitting

-Safety switch (can be wired as binary or trinary)

-40 amp fan relay

-Bent ½” hard line with #8 male and female swivels connects to condenser

Other requirements:

Sanden SD7B10 AC compressor, Kwik part number 10266-01

Curved AC manifold, Kwik part number 342310

Optional--straight AC manifold, Kwik part number
K10550 used with R4 to Sanden mini conversion kit

Installation Instructions

90-93 OBS Sanden AC lines Instructions

Kwik Performance OBS AC Hose kit installation Video

Kwik Performance AC System Trinary Switch Wiring Instructions (YouTube)

Trinary Switch wiring diagram (pdf)

FAQs

Q: What years of OBS Chevy trucks does this A/C hose kit fit?
 This kit is designed for 1991–1993 OBS Chevy trucks and will also fit some 1990 models that have a condenser with two male fittings. If your 1990 condenser has one male and one female fitting, you’ll need Kit K10707 instead.

Q: Which A/C compressors are compatible with this kit?
This kit is built for use with the Sanden Mini SD7B10-7176 compressor. If you’re running a Sanden HD, you’ll need Kit K10670, and if you’re using a GM R4, you’ll need Kit K10671.

Q: Can I use this kit if I’m converting from a GM R4 to a Sanden Mini compressor?
 Yes. For R4-to-Sanden Mini conversions, use Kit K10606, which requires the straight manifold fitting kit (Kwik Part #K10550).

Q: Does this kit include everything I need for installation?
 Yes, but you or the AC shop doing the install will need to replace the dryer. The kit comes with pre-bent hardlines, pre-crimped hoses, service ports, O-rings, and a trinary switch. It also includes clear instructions and wiring diagrams for a smooth install.

Q: Do I need special fittings or extra crimping for this kit?
 No. All hoses and fittings are pre-crimped and clocked correctly, so you don’t need to source additional parts or make trips to a shop for custom crimping.

Q: Why is a trinary switch included in the kit?
The trinary switch protects your compressor by monitoring both high- and low-pressure conditions. It also gives you the option to wire in an electric fan for better cooling performance.

Q: Which Kwik Performance brackets does this kit work with?
This kit works with Kwik Performance brackets designed for the Sanden Mini SD7B10-7176 compressor, including:

These applications require the Kwik 90° manifold fitting kit (Part #342310).
