Kwik Performance Inc.  |  SKU: K10709

AC Hose Kit (88-90) OBS Chevy - GM R4 - K10709

$345.00 USD
Shipping calculated at checkout.

Description

Bolt-On A/C Hose Kit for 1988-1990 OBS Chevy Trucks (GM R4 Compressor). This hose kit is designed specifically for LS swaps where you are keeping your original R4 A/C compressor.

Connect to your factory AC system with new hoses designed specifically for 1988-90 OBS Chevy trucks. This kit requires a condenser with (1) male and (1) female connection at the condenser. 1990 was a changeover year, if your truck has two male connectors at the condenser check out our AC Hose Kit (90–93) OBS Chevy – GM R4 – K10671.

Upgrade your LS-swapped 1988–1990 OBS Chevy truck with a bolt-on AC hose kit engineered specifically to connect a GM R4 compressor to your factory AC system. This hose kit makes it easy to bring cold air back into your classic truck.



Key Features

  • R4 vertical manifold fitting kit
  • New manifold seal kit
  • Dryer/Accumulator and PAG oil - Now included!
  • Pressure Safety Switch - High and Low pressure protection for your AC system
  • Complete bolt-on solution – no custom crimping or sourcing extra fittings
  • Factory-style fit – pre-bent hardlines prevent hose rub and ensure durability
  • Pre-crimped hoses – clocked correctly for simple installation and OEM-style reliability
  • Service ports – suction and discharge hoses feature service fittings for easy charging and diagnostics
  • Flexible wiring – safety switch can be wired as binary (compressor only) or trinary (compressor + fan control)
  • Kwik Performance engineered – designed to integrate with Kwik A/C brackets for LS, BBC, and SBC applications



For use with Kwik Performance AC brackets using GM R4 AC compressors:

LS R4 compressor bracket:

      K10623   Truck/LS3 Camaro spacing



Click on image to view our OBS condenser guide

Click below to view our AC wiring instructions

What's Included / Other Requirements

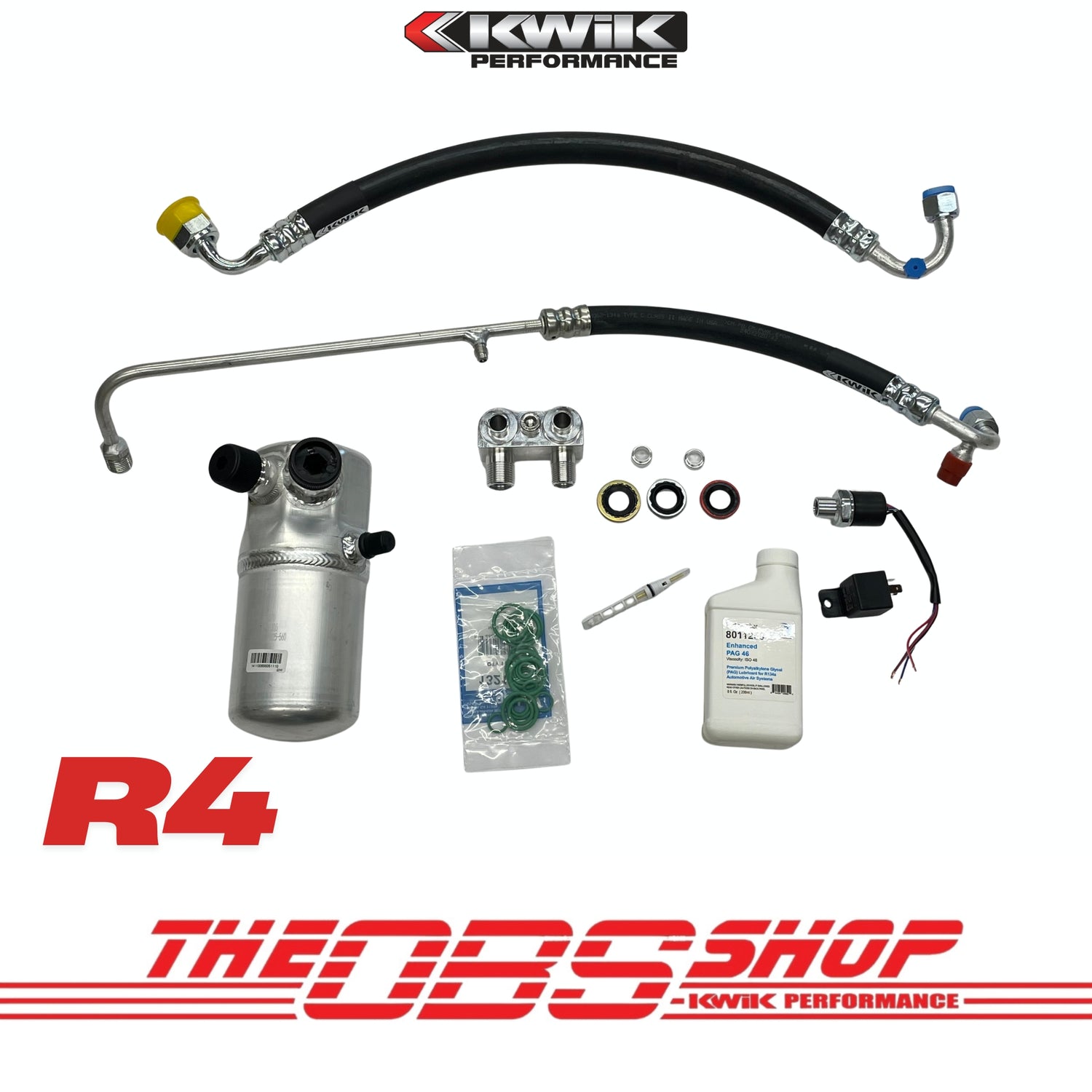

Hose kit includes:

#10 suction hose (1/2” ID, 1” OD)

-45 degree swivel from receiver/drier

-90 degree swivel with service port to compressor

#8 high pressure hose (13/32” ID, 29/32”OD)

-135 degree swivel with service port from compressor

-Straight swivel connects to safety switch fitting

-Safety switch fitting

-Safety switch (can be wired as binary or trinary)

-40 amp fan relay

-Bent ½” hard line with #8 male and female swivels connects to condenser

-Vertical AC manifold, Kwik part number 045024

-Dryer/Accumulator

  • We recommend waiting to install until ready to charge the system.

-PAG oil (8oz)

Other requirements:

GM R4 compressor with 6-groove serpentine pulley

Installation Instructions

88-90 OBS R4 AC lines Instructions (pdf)

Kwik Performance OBS AC Hose kit installation Video

Kwik Performance AC System Trinary Switch Wiring Instructions (YouTube)

Trinary Switch wiring diagram (pdf)

Chevy OBS condenser guide (pdf)

FAQs

Q: What compressor works with this AC Hose Kit?

A: This AC Hose Kits works with the GM R4 compressor, if you have a Sanden Mini refer to our K10707, if you have the Sanden HD check out our K10708.

Q: Will this kit work with other AC brackets or compressors?
A: This kit is specifically designed to work with the Kwik Performance AC bracket (K10623) and a GM R4 compressor. Compatibility with other setups is not guaranteed. If you have questions, do not hesitate to give us a call at 417-955-1467.

Q: What if my truck has two male fittings at the condenser?
A: You'll need our AC Hose Kit (90–93) OBS Chevy – GM R4 – K10671, which is made specifically for that fitting configuration.

Q: Can I wire this kit as a binary or trinary system?
A: Yes. The included pressure switch supports both configurations and we provide wiring diagrams for each.

Q: Why do I need to wait to open the drier?
A: The included drier contains desiccant that absorbs moisture. Opening it too early can reduce effectiveness. Only open it when you’re ready to pull a vacuum.

Q: Is any custom crimping or hose cutting required?
A: No. All hoses are pre-cut and pre-crimped to make installation as fast and easy as possible.

Q: Will this kit fit a small block or big block engine?
A: This specific kit is designed for LS engine swaps. We offer other kits compatible with small block or big block setups.
