Kwik Performance Inc.  |  SKU: K10694

AC Hose Kit (94-98) OBS Chevy - Sanden Mini - K10694

$295.00 USD
Shipping calculated at checkout.

Description

Bolt-On A/C Hose Kit for 1994–1998 OBS Chevy Trucks (Sanden SD7B10 Mini Compressor)

Easily connect your Sanden SD7B10-7176 (Sanden Mini) compressor to the factory GM A/C system with this complete bolt-on kit. Designed for 1994–1998 OBS Chevy trucks equipped with R134a A/C systems and metric-thread fittings, this kit provides a factory-style installation with pre-crimped hoses, bent hardlines, and all necessary fittings.

Key Features

  • Dryer/Accumulator and PAG oil - Now included!
  • Pressure Safety Switch - High and Low pressure protection for your AC system
  • Complete bolt-on solution – no custom crimping or sourcing extra fittings
  • Factory-style fit – pre-bent hardlines prevent hose rub and ensure durability
  • Service ports included – suction and discharge hoses feature service fittings for easy charging and diagnostics
  • Flexible wiring – safety switch can be wired as binary (compressor only) or trinary (compressor + fan control)
  • Pre-crimped hoses – clocked correctly for simple installation and OEM-style reliability
  • Kwik Performance engineered – designed to integrate with Kwik A/C brackets for LS, BBC, and SBC applications



For use with Kwik Performance AC brackets using Sanden Mini SD7B10--7176 AC compressors (requires use of 90 degree manifold fitting kit):

LS High & Tight mount:

K10780 AC Bracket - Truck (99-13) / Camaro (10-15)

Big Block Chevy M4 System:

K10278 (Type-2 PS Pump)

K10653 (P-series PS Pump)

Small Block Chevy Serpentine System:

K10323   AC-Alt/PS Type 2

K10324   AC-Alt/PS P-series

-------------------------------------------------------

GM R4 to Sanden Mini compressor conversion:

K10606*

           *(Requires use of straight manifold fitting kit, Kwik part number K10550)



Click on image to view our OBS condenser guide

Click below to view our AC wiring instructions

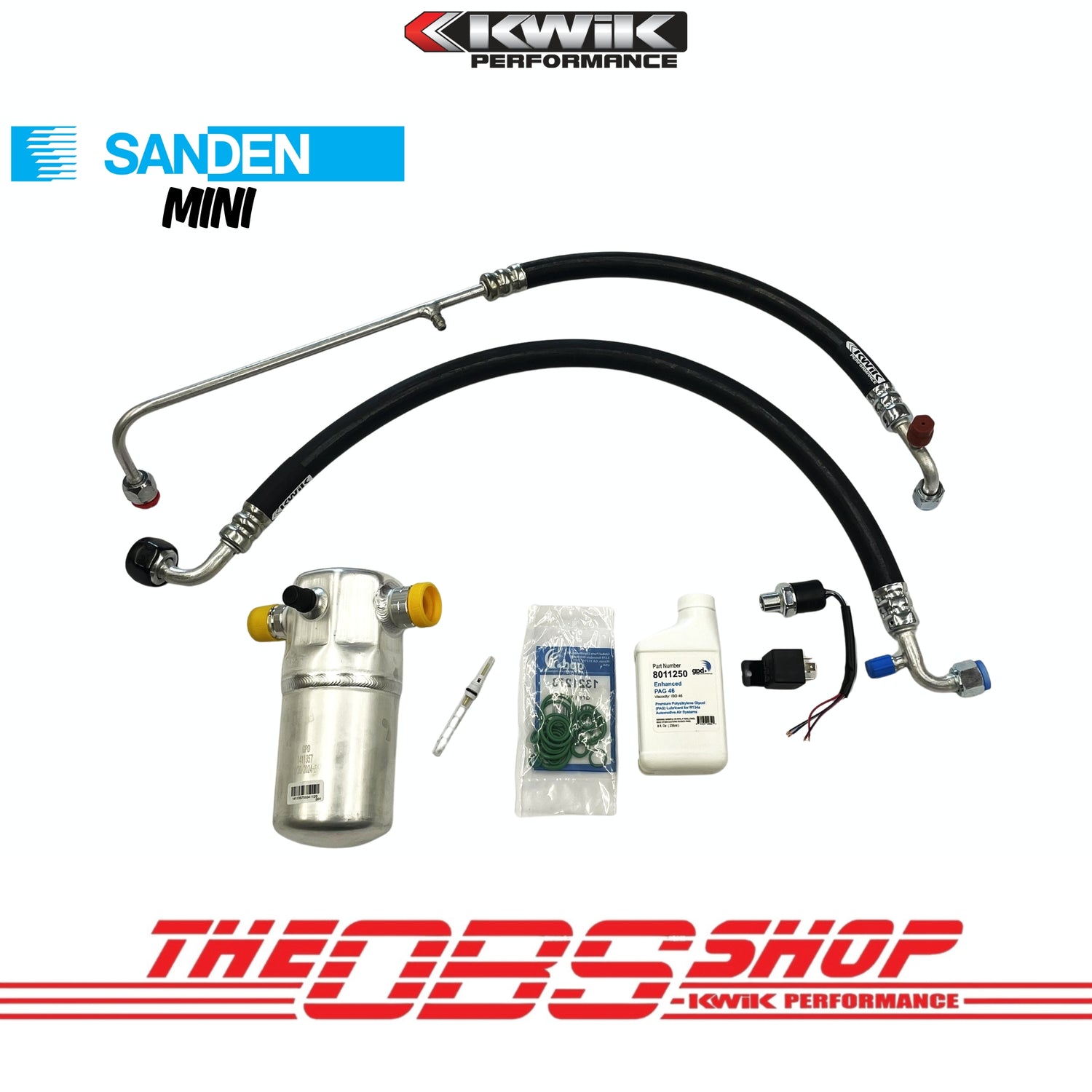

What's Included / Other Requirements

Hose kits include:

#10 suction hose (1/2” ID, 1” OD)

-90 degree metric swivel for reviver/dryer

-90 degree swivel with service port to compressor

#8 high pressure hose (13/32” ID,
29/32”OD)

-90 degree swivel with service port from compressor

-Straight swivel connects to safety switch fitting

-Safety switch fitting

-Safety switch (can be wired as binary or trinary)

-40 amp fan relay

-90 degree hardline connects safety switch fitting to condenser

-Dryer/Accumulator

  • We recommend waiting to install until ready to charge the system.

-PAG oil (8oz)

Other requirements:

  • Sanden SD7B10 AC compressor, Kwik part number 10266-01
  • Curved AC manifold, Kwik part number 342310
  • Optional--straight AC manifold, Kwik part number K10550 used with R4 to Sanden mini conversion kit

Installation Instructions

94-98 OBS Sanden AC lines Instructions (pdf)

Kwik Performance OBS AC Hose kit installation Video

Kwik Performance AC System Trinary Switch Wiring Instructions (YouTube)

Trinary Switch wiring diagram (pdf)

FAQs

Q: What years does this A/C hose kit fit?
 This kit is designed for 1994–1998 OBS Chevy trucks equipped with factory R134a systems and metric-thread fittings.

Q: Which compressors are compatible with this kit?
 This kit is specifically for the Sanden SD7B10-7176 (Sanden Mini) compressor. For Sanden 508/709 compressors, see our 1994–98 Sanden 508/709 kit.

Q: Do I need a specific drier for installation?
 Yes. A 1995 Chevy truck drier is included. It bolts in place of the 1996–1998 drier for proper compatibility.

Q:Can the safety switch be wired more than one way?
 Yes. It can be wired as a binary switch (compressor protection) or as a trinary switch (compressor + fan control).

Q: Do I need to source additional fittings or hoses?
 No. All hoses are pre-crimped and clocked with hardlines bent for a factory-style installation.

Q: Which Kwik Performance brackets work with this kit?
This kit works with Kwik LS High & Tight (K10780), Big Block Chevy M4 (K10278, K10653), and Small Block Chevy Serpentine (K10323. K10324) brackets when used with the 90° manifold kit (Part #342310).
