Kwik Performance Inc.  |  SKU: K10695

AC Hose Kit (94-98) OBS Chevy - Sanden HD - K10695

$250.00 USD
Shipping calculated at checkout.

Description

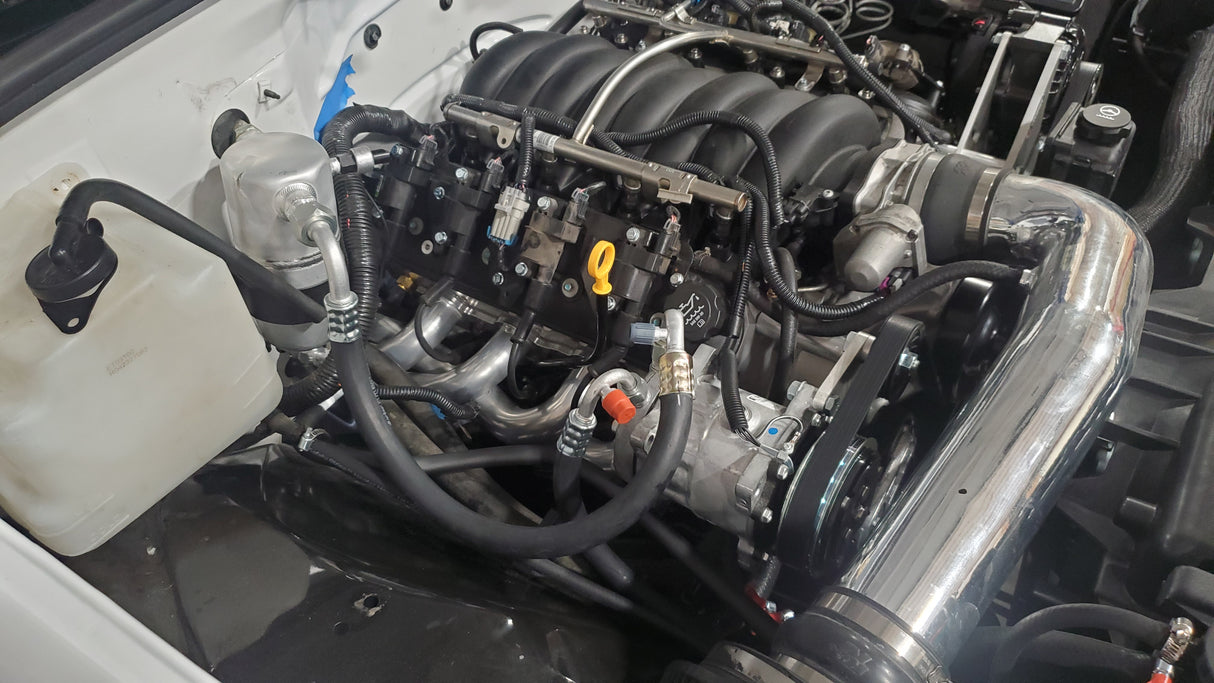

Bolt-On A/C Hose Kit for 1994–1998 OBS Chevy Trucks (Sanden 508/709 Compressors)

Easily connect your Sanden 508 or Sanden 709 (SD7H15) compressor to the factory GM A/C system with this complete bolt-on kit. Designed for 1994–1998 OBS Chevy trucks equipped with R134a A/C systems and metric-thread fittings, this kit provides a factory-style installation with pre-crimped hoses, bent hardlines, and all the fittings you need.

Note: Requires 1995 Chevy Truck drier (will bolt on in place of 96-98 drier)

Key Features

  • Complete, bolt-on solution – no custom crimping or sourcing extra fittings
  • Factory-style fit – pre-bent hardlines prevent hose rub and ensure long-term durability
  • Service ports included – both suction and discharge hoses have service fittings for easy charging and diagnostics
  • Safety switch included – can be wired as binary (compressor only) or trinary (compressor + fan control)
  • Pre-crimped hoses – clocked correctly for fast installation with OEM-style reliability
  • Wiring support – comes with a 40-amp fan relay and detailed wiring diagrams
  • Kwik Performance engineered – designed to work seamlessly with Kwik brackets for LS, Gen 5, and BBC applications

For use with Kwik Performance AC brackets using Sanden 508/709 AC compressors:

LS wide mount:

L83/86 Gen 5 Trucks:

·              K10438

Big Block Chevy M4 System:

·              K10255

·              K10654

Chevy OBS condenser guide

What's Included / Other Requirements

508/709 AC hose kits include:

#10 suction hose (1/2” ID, 1” OD)

  • 90 degree metric swivel from receiver/drier
  • 135 degree swivel with service port to compressor

#8 high pressure hose (13/32” ID, 29/32”OD)

-135 degree swivel with service port from compressor

-Straight swivel connects to safety switch fitting

-Safety switch fitting

-Safety switch (can be wired as binary or trinary)

-40 amp fan relay

-90 degree hardline connects safety switch fitting to condenser

Other requirements:

Sanden SD7H15 (709) AC compressor, Kwik part number 10300-01

Or Sanden 508 style compressor for BBC or SBC engines (not recommended for LS engines)

Installation Instructions

94-98 OBS Sanden AC Instructions

FAQs

Q: What years does this A/C hose kit fit?
This kit fits 1994–1998 OBS Chevy trucks with R134a systems and metric-thread fittings.

Q: Which compressors are compatible with this kit?
 The kit is designed for the Sanden 508 and Sanden 709 (SD7H15) compressors. For LS engines, the 508 is not recommended, use the 709 instead.

Q: Do I need a specific drier for this kit?
 Yes. It requires a 1995 Chevy truck drier, which bolts in place of the ’96–’98 drier.

Q: Can the safety switch be wired in different ways?
 Yes. The included safety switch can be wired as a binary switch (compressor only) or a trinary switch (compressor + fan control).

Q: Do I need extra fittings or custom hoses?
 No. All hoses are pre-crimped and clocked, and hardlines are bent for a factory-style installation. No extra fittings or custom crimping are needed.

Q: Which Kwik Performance brackets work with this kit?
 This kit works with Kwik Performance LS wide mount (K10470, K10471, K10472), Gen 5 L83/86 (K10438), and Big Block Chevy M4 systems (K10255, K10654).
