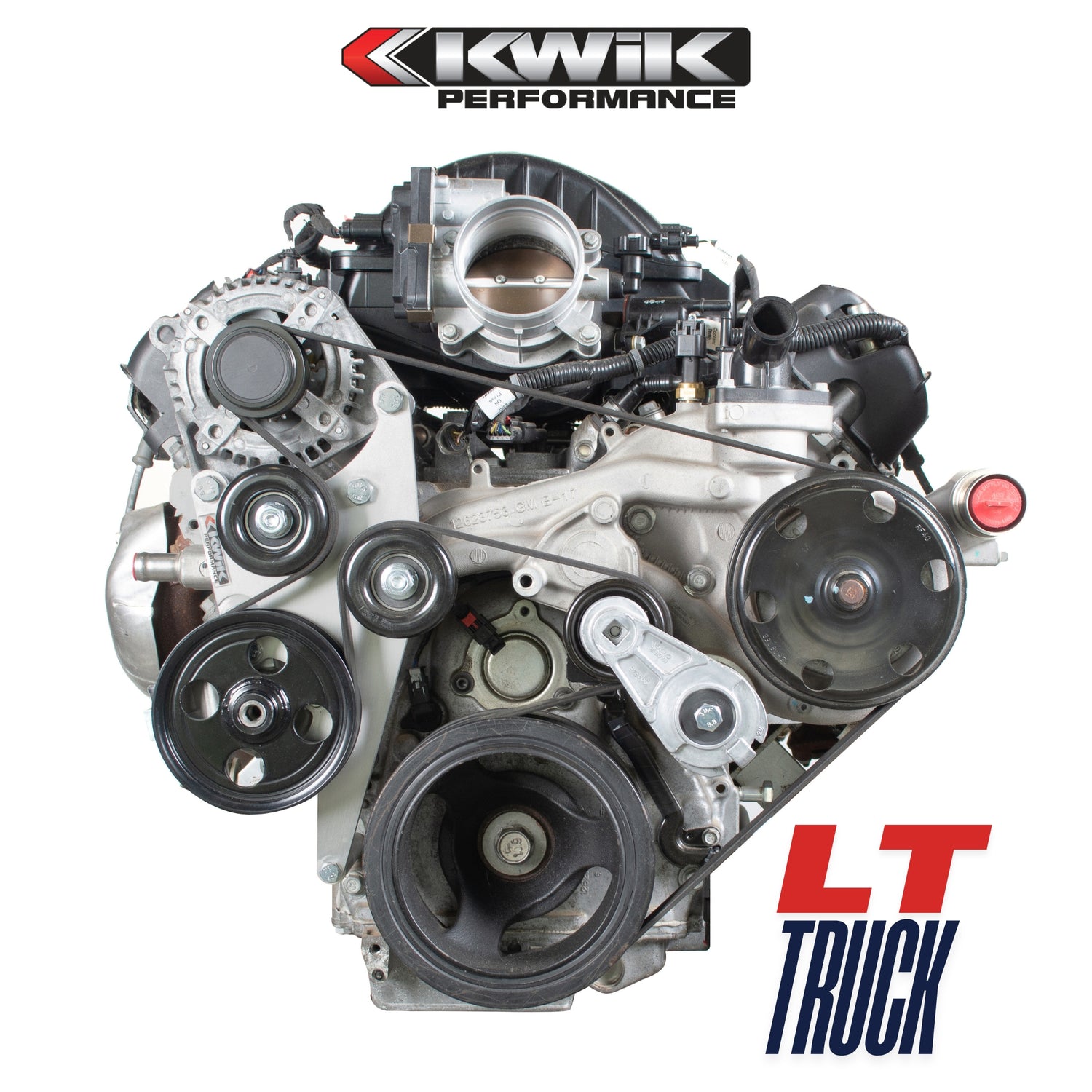

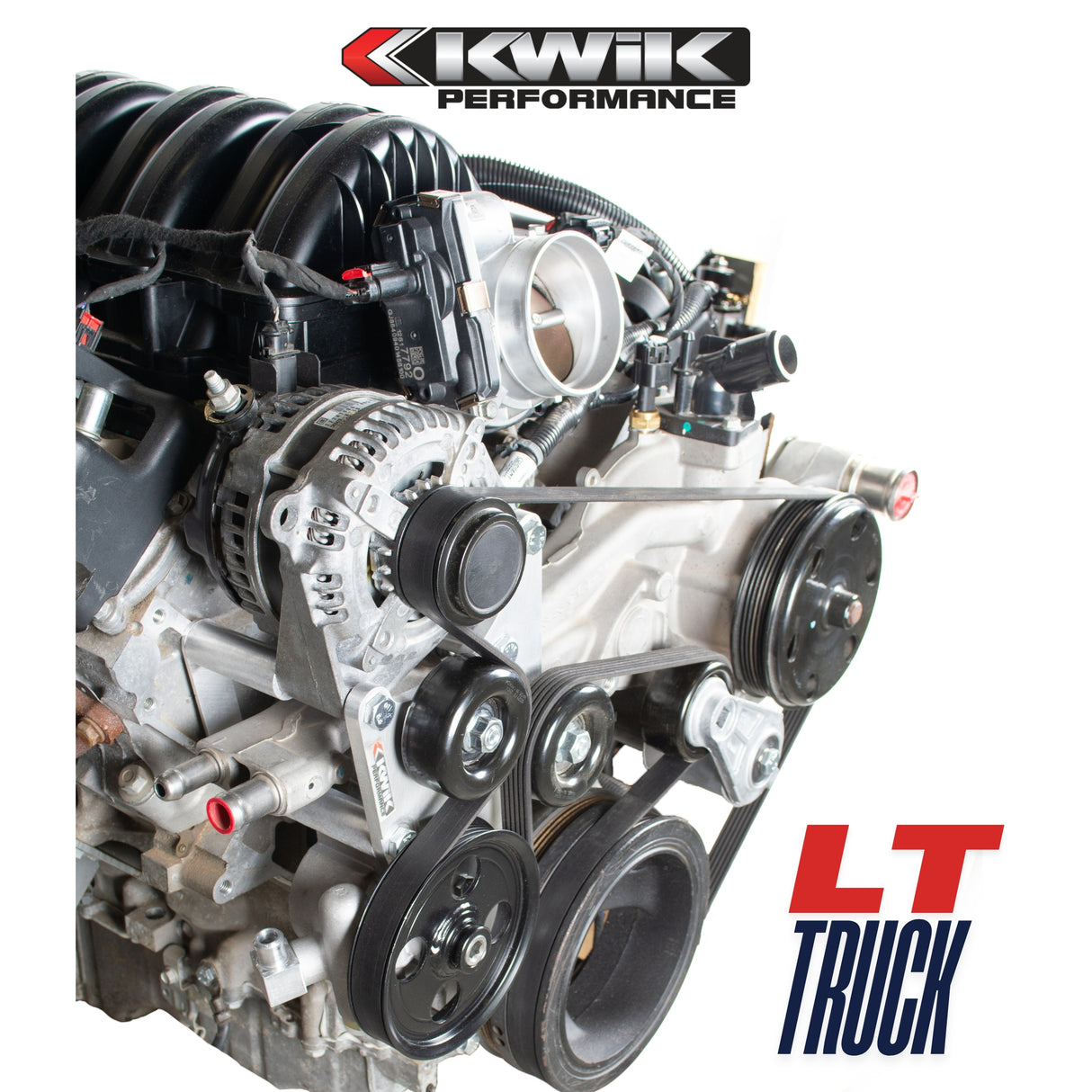

Camioneta LT (14-19) Soporte Alt/PS (sin aire acondicionado)

 What's included:

Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)

All necessary spacers and zinc coated fasteners

Power Steering Pump

Idler Pulleys

What else is required to complete the installation:

GM LT Gen 5 engine with Truck/SUV (L83 or L86 2014-2019) harmonic balancer and water pump

LT Truck alternator

Six-rib belt (Gates K060910)

Complete Gates belt chart available.

Alternator rating and PS pulley diameters can change suggested lengths.

Always check tensioner marks for correct fitment.

Remote-style Power Steering Reservoir

Power Steering hose kit

View our Hose Kit: (Kwik Performance PN K10549).

LT Truck (14-19) Alt/PS Bracket (No AC) Instructions

Gates Belt Chart (Part number and length)

General Product FAQs

• What is the primary purpose of the K10460 bracket kit? It allows you to mount a high-quality hydraulic power steering pump onto 2014-2019 GM LT Gen 5 truck engines (L83, L86).
• Why would I need this bracket? Most Gen 5 LT truck engines were equipped with electric power steering from the factory. This bracket is essential for swaps into older vehicles (like C10 or OBS trucks) that require a hydraulic pump for their steering box.
• Does this kit include a power steering pump? Yes, the K10460 is a master kit that combines the bracket and a Type II power steering pump into one package.

Compatibility & Installation

• Why is the power steering pump located on the passenger’s side of the engine? We do that because these engines have an offset water pump taking up space on the driver’s side. Also, GM put a put a vacuum pump low on the driver's side. We did not want to force anyone to remove this.
• How do I connect the pump to my gearbox on the other side of the engine?  We offer a custom kit with longer hoses that will work great with C10 and C1500 OBS (1988-98) trucks and has been used on front steer GM cars as well.
•  Is this kit compatible with factory AC? This specific part number (K10460) is the power steering only version. If you need both AC and Power Steering, you would look at the K10702 for Sanden HD compressor or K10742 for the Sanden Mini compressor kit.

• Can I use my original LT truck alternator? Yes, this system is designed to work in conjunction with your factory LT Truck alternator and its original mounting location.

Technical Specifications

• What material is used for the bracket? Like other Kwik Performance brackets, it is precision-machined from 6061-T6 aircraft-grade aluminum.

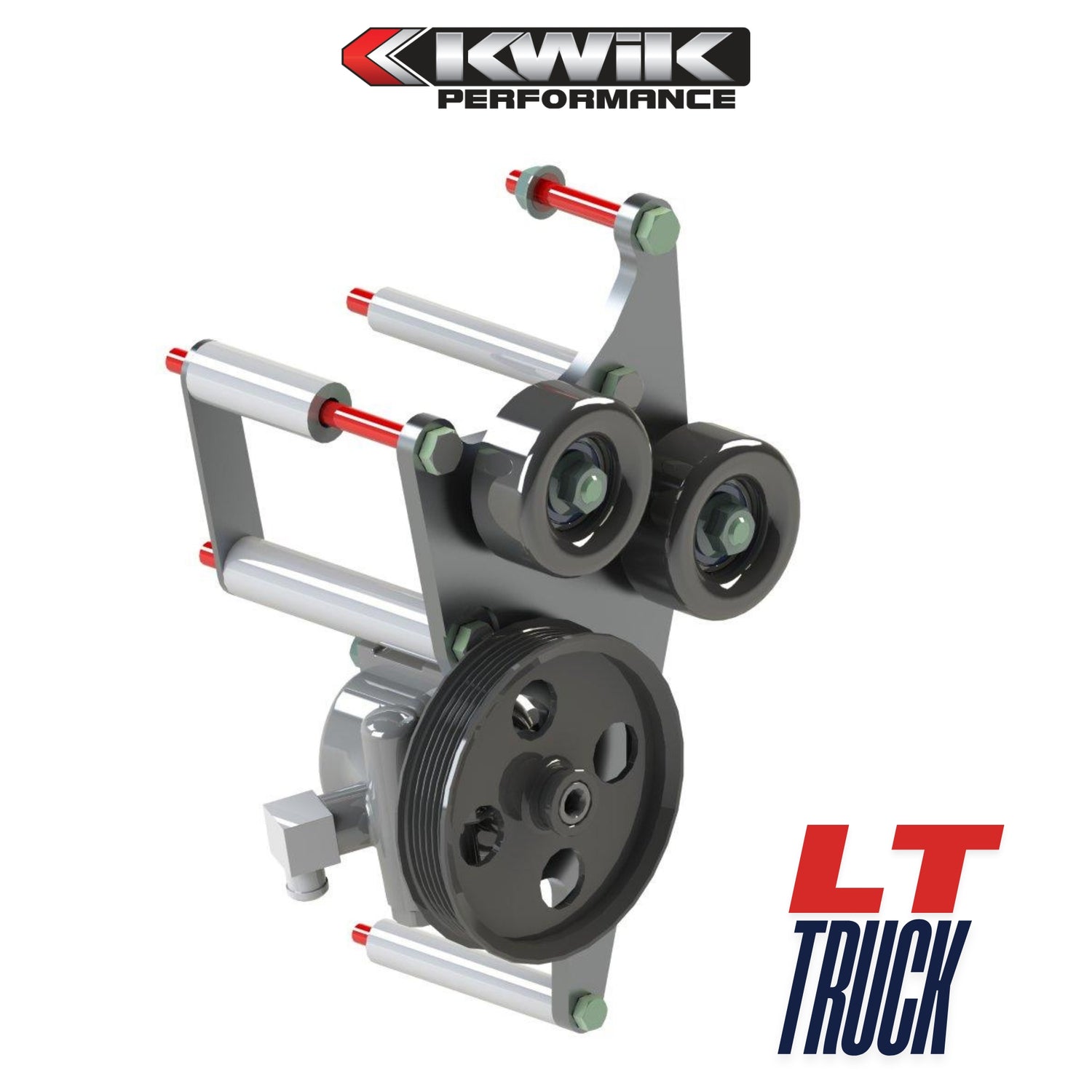

• What is included in the package? The kit includes the aluminum mounting bracket, a Type II power steering pump assembly, and all necessary spacers and zinc-coated fasteners.
