Paquete SBC Serpentine, AC-Alt/PS (Sanden Mini)

What’s Included in the Kit

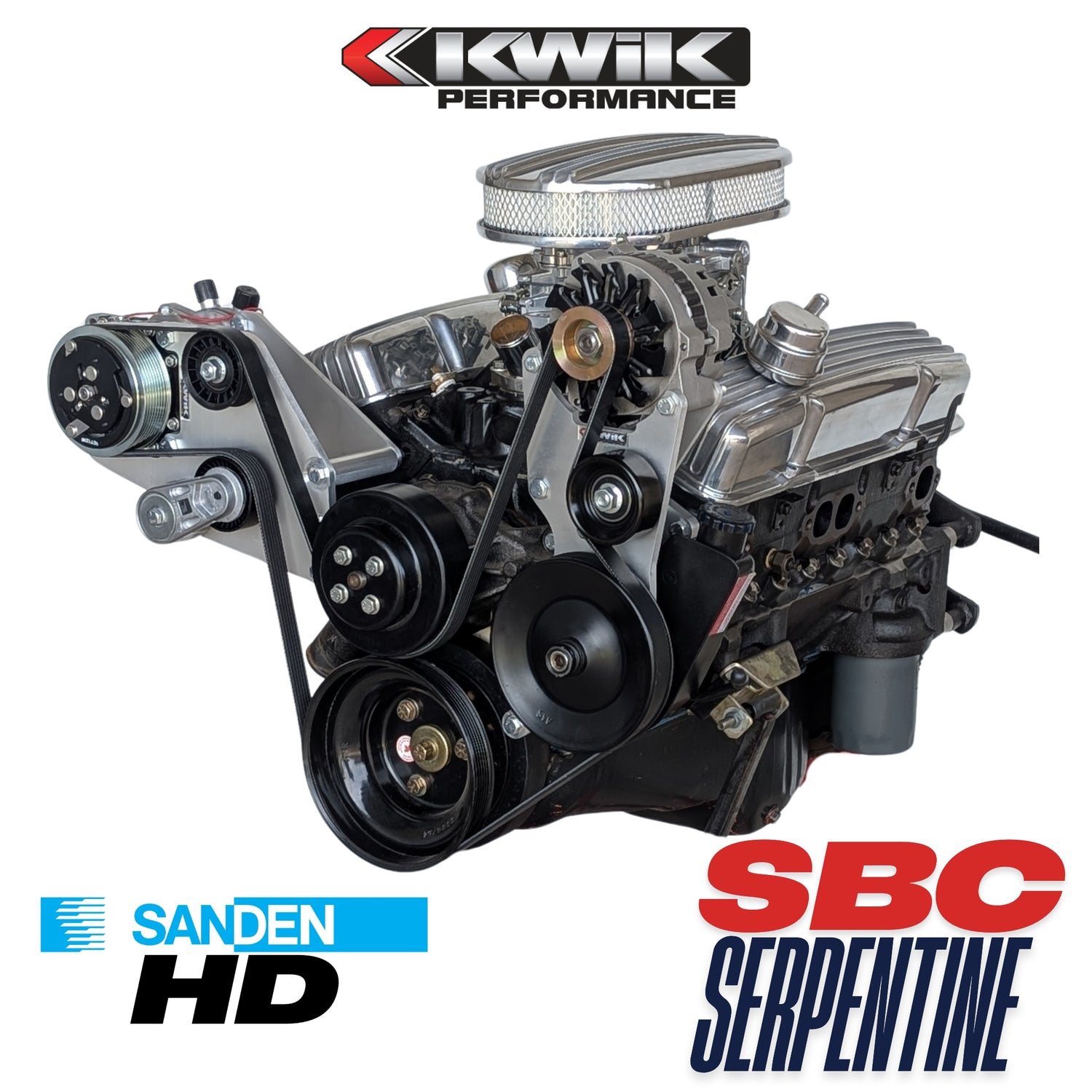

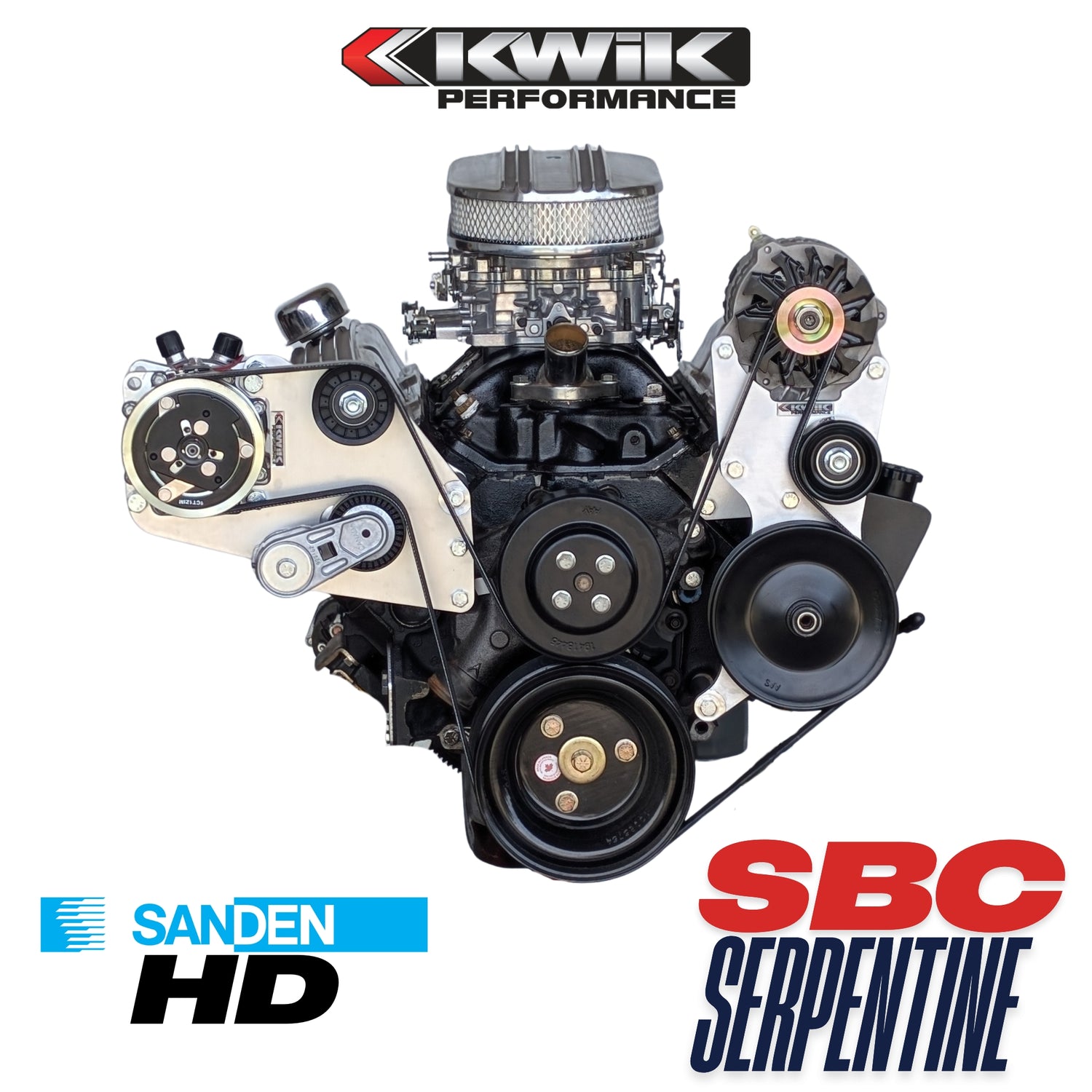

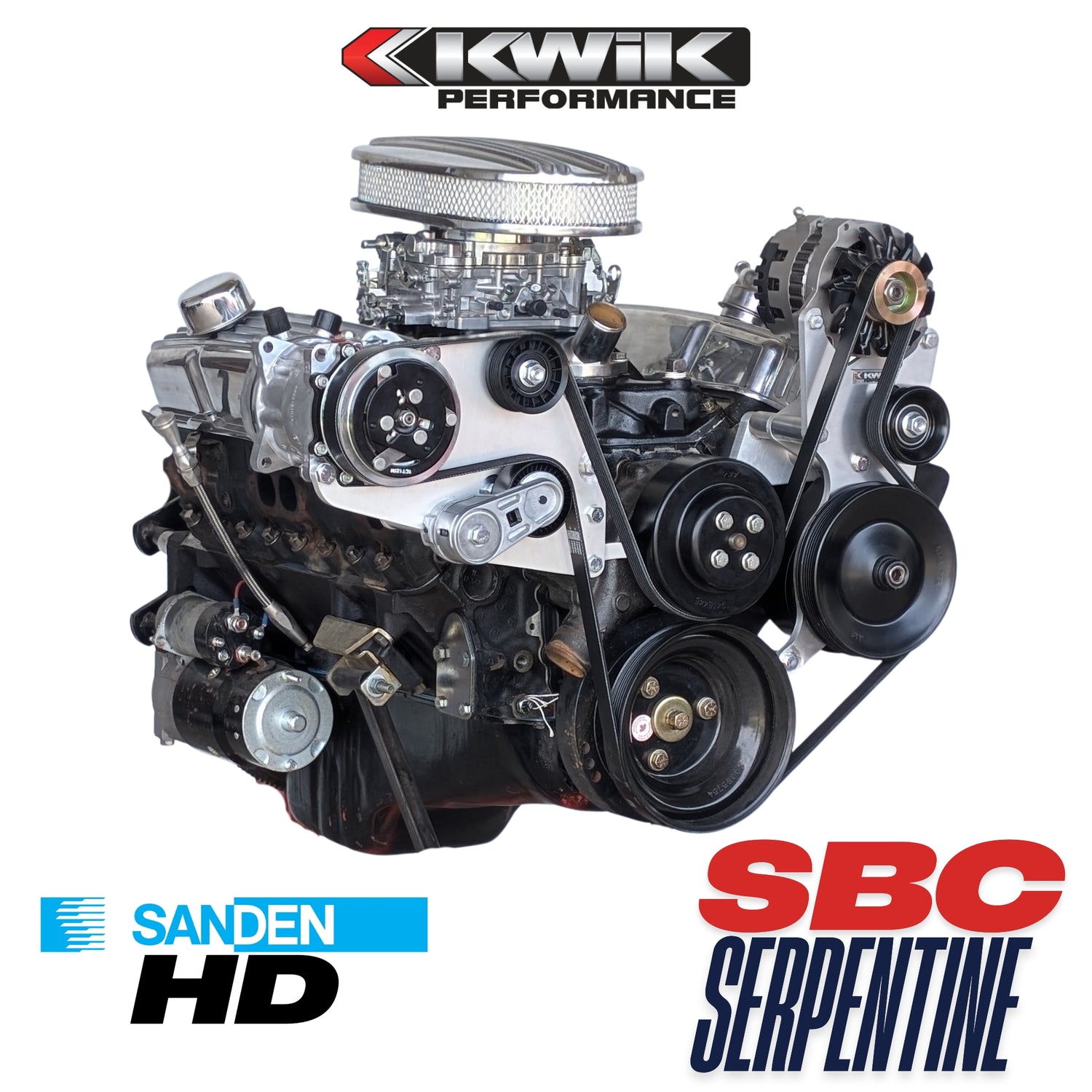

We supply all the brackets, pulleys, and mounting hardware required to mount your accessories to your Small Block Chevy:

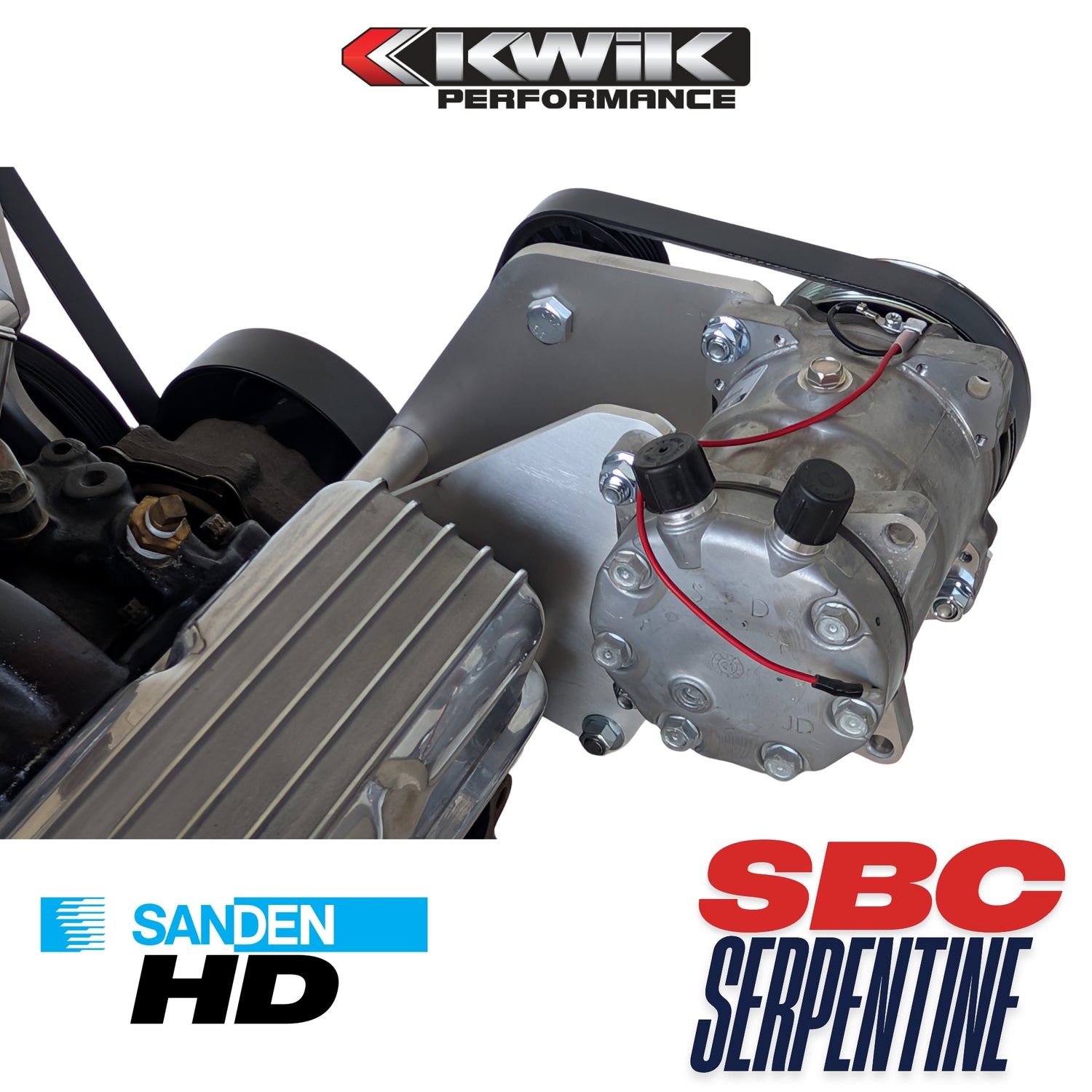

• Passenger-Side A/C Bracket Assembly: Brushed aluminum brackets for Sanden SD508 and SD709 compressors.
• Driver-Side Alternator & Power Steering Bracket Assembly: Configured for Saginaw P-Series pumps with attached steel reservoirs.
• Pulley Package: Crankshaft pulley, water pump pulley, and idler pulley,
• Automatic Belt Tensioner: Heavy-duty spring-loaded tensioner assembly.
• Complete Hardware Kit: Zinc-coated fasteners, aluminum spacers, and step-by-step installation instructions.

What Else You Need to Complete the System

To keep your options flexible, these base bracket kits do not include the accessories. You can use existing components that match our specifications or purchase brand-new components directly from us.

• Air Conditioning Compressor: Sanden SD508 or Sanden SD709 (SD7H15) serpentine compressor. (We stock and recommend the Genuine Sanden 709 for maximum cooling capacity, part number 10300-01).
• Alternator: Standard CS130 style alternator matching the 1988–1995 Chevrolet pickup mounting configuration. (Older 10SI and 12SI alternators do not fit. For high-draw systems, we offer a 140-amp Powermaster CS130 alternator, part number 47861).
• Power Steering Pump: Saginaw P-Series.
• Water Pump: SBC reverse-rotation water pump used in Chevy trucks from 1988-95.
• Serpentine Belt: 6-rib belt. Our installation instructions give you recommended belt lengths and Gates part numbers.
• Cylinder head threaded hole: Fits all classic Gen 1 SBC engines (1969 and later). Requires cylinder head with at least one threaded hole on passenger side.
• Optional A/C hose kits: If this bracket system is being used in a Chevy C10 or OBS truck, we offer custom, ready-to-bolt in A/C hose kits that will connect your HD compressor to your existing condenser and evaporator. See: https://www.kwikperf.com/collections/c10-ac-hoses  or https://www.kwikperf.com/collections/obs-ac-hoses

SBC Serpentine Alt/PS (P-series) Installation video (YouTube)

SBC Serpentine Package, Alt/PS P Series Instructions (PDF)

SBC Serpentine Package, AC (Sanden HD) Instructions (PDF)

Gates Belt Chart (Part number and length)

Q: What is new about this Small Block Chevy (SBC) serpentine accessory drive system?

A: We have expanded our SBC serpentine lineup to support full-size Genuine Sanden HD air conditioning compressors (SD508 and SD709). While our standard K10323 and K10324 systems feature the compact Sanden Mini compressor, these new kits upgrade the passenger-side A/C bracket to hold larger HD compressors while keeping the proven driver-side alternator and power steering options.

Q: Which A/C compressors fit the new passenger-side bracket?

A: The bracket is engineered to fit standard Sanden SD508 and Sanden SD709 compressors, We stock and recommend the Genuine Sanden SD709, part number 10300-01, (officially the SD7H15) for maximum displacement and quiet operation at higher RPMs.

Q: Why would I choose a Sanden HD compressor over a Sanden Mini?

A: The Sanden Mini (SD7B10) is ideal for tight engine bays, but the Sanden HD series delivers significantly higher refrigerant displacement and overall cooling capacity. If you are building a truck, a vehicle with a large interior cabin, or driving in hot climates, the HD compressor provides superior climate control performance.

Q: What power steering pumps are compatible with this kit?

A: This version uses the popular Saginaw P-Series, sometimes called the “canned ham” due to the shape of the attached steel reservoir. We offer both the standard version and the pump with two return lines compatible with hydro-boost braking systems.

Q: Which alternators fit this system?

A: This system is engineered specifically for the CS130 alternator using the mounting configuration found on 1988 through 1995 Chevrolet pickups. Older 10SI and 12SI alternators do not fit this bracket arrangement. If you need higher electrical output than a standard factory replacement, we offer a 140-amp Powermaster CS130 alternator, part number 47861.

Q: How does this system handle belt tensioning?

A: Like all of our complete serpentine systems, this kit uses a spring-loaded automatic belt tensioner. This maintains continuous, proper belt tension under all engine loads, preventing belt slip and eliminating manual adjustments (remember those with your old V-belt system?)

Q: How do I select the correct serpentine belt length?

A: We provide recommended belt lengths and Gates part numbers in our installation instructions. You can also consult our complete Gates belt chart in the instructions section on the product page if you need to fine-tune your belt selection once your accessories are mounted.
